Y81QF-250 Hydraulic Scrap Metal Baler with 2500x2000x1200mm Press Box and 600x600mm Bale Size for 300-500Kg Scrap Recycling
Contacteer me voor vrije steekproeven en coupons.
Whatsapp:0086 18588475571
wechat: 0086 18588475571
Skype: sales10@aixton.com
Als u om het even welke zorg hebt, verstrekken wij de online-Help van 24 uur.
xProductdetails
| Model nr. | Y81QF-250 | Type | schrootpers |
|---|---|---|---|
| Automatisering | Semi-automatisch | Hoofdcyl.force | 250 ton |
| Druk op de boxgrootte | 2500*2000*1200 (mm) | Baalmaat | 600*600 (mm) |
| Baalgewicht | 300 ~ 500 (kg) | Motorvermogen | 60 ((kw) |
| Stroomtype | Hydraulische aandrijving | Hoofdoliecilinder | YG340/220, 2PC |
| Zijdrukcilinder | YG240/160, 2 stc | Turning Bag Cilinder | YG140/75, 1 stc |
| Deurafdekkingcilinder | YG240/160, 1 stc | Koeler model | GLC-12M² |
| Hydraulische druk | ≤26MPa | ||
| Markeren | 2500x2000x1200mm Hydraulic Scrap Metal Baler,600x600mm Scrap Baling Machine,300-500Kg Metal Recycling Baler |
||
Productomschrijving

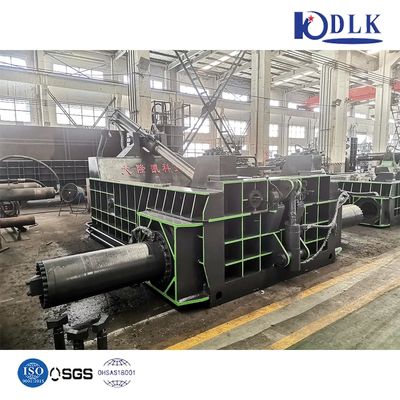

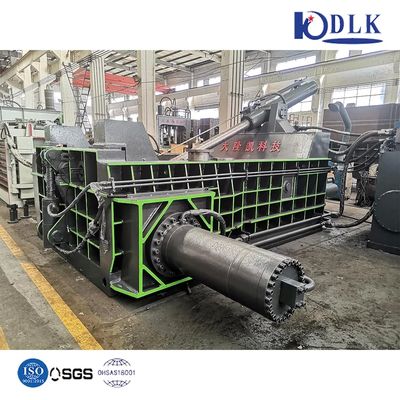

Y81qf-250 Hydraulic Scrap Metal Baling Recycling Machine
Product Description
The Y81 series hydraulic metal baler utilizes the plastic deformation properties of metal materials under external force to create tightly packed bales. This industrial-grade machine is primarily used in scrap metal recycling yards, steel mills, and metal processing facilities.
Key Features
- Hydraulic drive system with compact, sealed design
- Customizable press box and bale dimensions
- Multiple bale discharge options: turn-out, side-push out, and forward-out
- High-efficiency quick unit for improved productivity
- Premium components including motors, hydraulic systems, and electrical parts
Technical Specifications
| Parameter | Details |
|---|---|

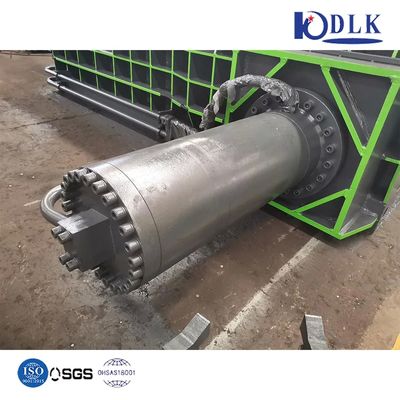

| Main Oil Cylinder | Model: YG340/220 (2pc), Normal force: 2500KN, Stroke: 730mm |
| Side Pressure Cylinder | Model: YG240/160 (2pc), Normal force: 1100kN*2, Stroke: 2070mm |
| Turning Bag Cylinder | Model: YG140/75 (1pc), Normal force: 120kN, Stroke: 1900mm |
| Door Cover Cylinder | Model: YG240/160 (1pc), Normal force: 1100kN, Stroke: 320mm |
| Cooling System | Cooler: GLC-12m² (12 m²), Cooling Tower: LJR-20L (0.55kW) |

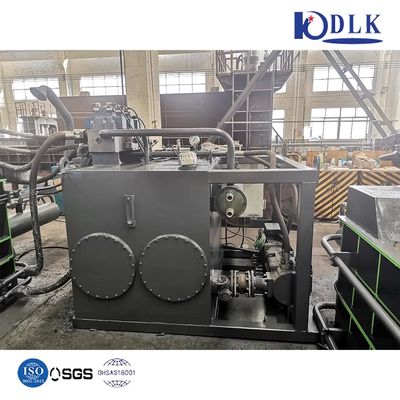

| Hydraulic System | Working pressure ≤26MPa |
| Compression Chamber | 2500x2000x1000mm |
Note: Specifications are for reference only and may be customized.
Applications
This horizontal metal baler is ideal for factories of all sizes, metal recycling operations, and non-ferrous metal smelting industries. It efficiently processes various metal scraps including steel shavings, scrap steel, aluminum, and copper into compact cubes, cylinders, or octagons, significantly reducing transportation and smelting costs.
About Manufacturer
Dalongkai Technology Co., Ltd. specializes in developing hydraulic machinery for the scrap metal recycling industry. We are committed to advancing renewable resources and environmental protection through our high-quality metal balers and shears, designed to maximize your operational efficiency and profitability.
