200 Ton Hydraulic Baler with 1600*1200*800mm Press Box and 400*400mm Bale Size for Scrap Metal Recycling
Contacteer me voor vrije steekproeven en coupons.
Whatsapp:0086 18588475571
wechat: 0086 18588475571
Skype: sales10@aixton.com
Als u om het even welke zorg hebt, verstrekken wij de online-Help van 24 uur.
xProductdetails
| Model nr. | Y81F-200 | Hoofdcyl.force | 200 ton |
|---|---|---|---|
| Druk op de boxgrootte | 1600*1200*800 (mm) | Baalmaat | 400*400 (mm) |
| Baalgewicht | 120 ~ 170 (kg) | Motorvermogen | 37 kW |
| Spanning | 21,5 mpa | Aangedreven type | Hydraulisch |
| Automatisch cijfer | Semi-automatisch | Productiecapaciteit | 5 sets/maand |
| Nominale kracht | 125 tons ~ 1200 tons | Productiviteit | 4tons/verschuiving naar 40 tons/verschuiving |
| Extrusiekracht | 63 ton tot 400 ton | Vermogensbereik | 15 kW ~ 270 kW |
| Typen ontladen | Omdraaien, naar buiten duwen, doorsturen, handmatig tillen | ||
| Markeren | 1600*1200*800mm Hydraulic Baler,400*400mm Scrap Metal Baling Machine,120~170Kg Metal Scrap Press |
||
Productomschrijving

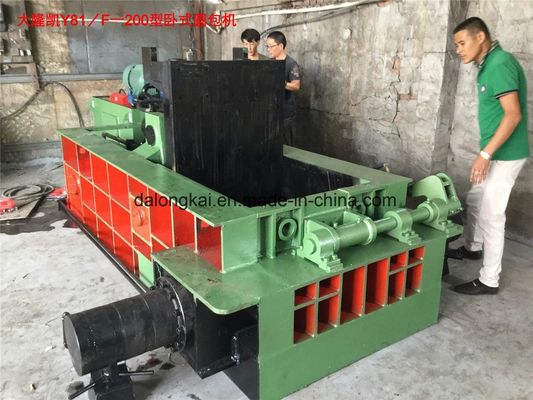

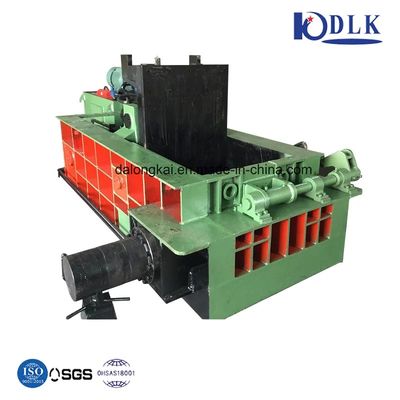

Y81f-200 Scrap Metal Baling Hydraulic Machine
Product Overview
The Y81 series metal hydraulic baler efficiently compresses various metal scraps including steel, copper, aluminum, stainless steel, and automotive materials into compact bales. This process reduces transportation costs and increases efficiency by producing uniform shapes such as square columns, cylinders, and octagons.
Key Features
- Ideal for steel plants, recycling centers, and metal processing industries
- Hydraulic drive system with manual or PLC automatic control options
- Multiple discharge methods: turning over, pushing out, forwarding out, or manual lifting
- No need for foot screw installation
- Diesel engine compatible for locations without power supply
- Extrusion force ranges from 63 to 400 tons (10 available grades)
- Productivity from 4 to 40 tons per shift
- Customizable compression chamber and bale dimensions
Technical Specifications
| Attribute | Details |
|---|---|
| Product Name | Y81 series hydraulic metal baler |
| Condition | New |
| Application | Scrap metal processing |
| Nominal Force | 125Tons ~1200Tons |
| Driven Type | Hydraulic |
| Power | 15KW~270KW |
| Voltage | 21.5Mpa, Customized |
| Color | Customized |
| Automatic Grade | Semi-Automatic |
Commercial Terms
| Term | Details |
|---|---|
| Minimum Order Quantity | 1 Set |
| Price | Negotiable |
| Payment Terms | 30% T/T In Advance |
| Supply Ability | 10 sets/month |
| Delivery Time | As per requirement |
| Packaging Details | Seaworthy packing |
| After-sales Service | Engineers available for overseas service |
Technical Parameters
| Model | Main Cyl.Force(ton) | Press Box Size(mm) | Bale Size(mm) | Bale Weight(kg) | Motor(KW) |
|---|---|---|---|---|---|
| Y81F-125 | 125 | 1200*700*600 | 300*300 | 50-70 | 15 |
| Y81F-160 | 160 | 1600*1000*800 | 400*400 | 100-150 | 22 |
| Y81F-200 | 200 | 1600*1200*800 | 400*400 | 120-220 | 37 |
| Y81F-250 | 250 | 2000*1750*1200 | 500*500 | 300-500 | 60 |
| Y81F-315 | 315 | 3000*2500*1200 | 600*600 | 400-700 | 90 |
| Y81F-315 | 315 | 3500*3000*1300 | 700*700 | 600-1000 | 90 |
| Y81K-315 | 315 | 4000*3000*1300 | 700*700 | 800-1200 | 135 |
| Y81F-400 | 400 | 3500*3000*1300 | 700*700 | 800-1300 | 135 |
| Y81K-400 | 400 | 4000*3000*1300 | 700*700 | 900-1300 | 135 |
| Y81F-500 | 500 | 4000*3000*1300 | 700*700 | 900-1500 | 135 |
| Y81K-500 | 500 | 4000*3500*1300 | 700*700 | 900-1600 | 135 |
| Y81F-600 | 600 | 4000*3000*1400 | 700*700 | 1000-1700 | 180 |
| Y81K-600 | 600 | 4000*3000*1300 | 700*700 | 1100-1700 | 180 |
| Y81F-800 | 800 | 4000*3500*1400 | 700*700 | 1200-1800 | 180 |
| Y81K-800 | 800 | 4000*3500*1400 | 700*700 | 1200-1800 | 180 |
| Y81F-1000 | 1000 | 5000*3500*1500 | 700*700 | 1300-1900 | 225 |
| Y81K-1200 | 1200 | 5000*3500*1500 | 700*700 | 1400-2000 | 270 |
Product Images
Manufacturer Information
Jiangsu Dalongkai Technology Co., Ltd. has been a trusted manufacturer of waste recycling equipment for over a decade. Specializing in scrap metal processing equipment, our product line includes shear balers, scrap balers, scrap shears, and recycling cranes.
We also supply horizontal and vertical balers for compacting plastic, paper, cardboard, straw, and textile waste. Our Dalongkai brand has received critical acclaim both domestically and internationally, with certifications including TUV and ISO9001 Quality Management System. We are currently pursuing CE and UL certifications.
Frequently Asked Questions
Q1: How can I get after-sales service?
A: We provide one year guarantee and lifelong maintenance. Spare parts are provided free if problems are caused by us. For user-caused issues, spare parts are available at cost. Direct phone support is always available.
Q2: Can I visit your factory before ordering?
A: Yes, we welcome factory visits. Our address: 29# Panlongshan Road, Jiangyin city, Jiangsu province, 214429, China (near Shanghai Pudong Airport). We provide airport pickup and hotel booking services.
Q3: Are you a factory or trading company?
A: We are a manufacturer with our own factory operating for 20 years, with 50-60% of production for export.
Q4: How can I trust your company?
A: With 20 years of professional experience, we offer:
- National patents and CE, ISO certifications
- Open factory inspections near Shanghai Pudong airport
- Specialized expertise in hydraulic balers and hydraulic shears
- National patents and CE, ISO certifications
- Open factory inspections near Shanghai Pudong airport
- Specialized expertise in hydraulic balers and hydraulic shears
Q5: Is your price competitive?
A: We provide only high-quality machines at the best factory price, backed by superior product quality and service.
