Y81F-200 Hydraulic Baling Press with 1800x1400x900mm Press Box and 400x400mm Bale Size for Metal Scrap Recycling

  • Y81F-200 Hydraulic Baling Press with 1800x1400x900mm Press Box and 400x400mm Bale Size for Metal Scrap Recycling
  • Y81F-200 Hydraulic Baling Press with 1800x1400x900mm Press Box and 400x400mm Bale Size for Metal Scrap Recycling
  • Y81F-200 Hydraulic Baling Press with 1800x1400x900mm Press Box and 400x400mm Bale Size for Metal Scrap Recycling
  • Y81F-200 Hydraulic Baling Press with 1800x1400x900mm Press Box and 400x400mm Bale Size for Metal Scrap Recycling
  • Y81F-200 Hydraulic Baling Press with 1800x1400x900mm Press Box and 400x400mm Bale Size for Metal Scrap Recycling
Min. bestelaantal 1

Contacteer me voor vrije steekproeven en coupons.

Whatsapp:0086 18588475571

wechat: 0086 18588475571

Skype: sales10@aixton.com

Als u om het even welke zorg hebt, verstrekken wij de online-Help van 24 uur.

x
Productdetails
Model nr. Y81F-200 Hoofdcyl.force 200 ton
Druk op de boxgrootte 1800*1400*900 (mm) Baalmaat 400*400 (mm)
Baalgewicht 130 ~ 180 (kg) Motorvermogen 44 (kW)
Nominale kracht 125 tons ~ 1200 tons Aangedreven type Hydraulisch
Spanning 21,5 mpa Automatisch cijfer Semi-automatisch
Productiecapaciteit 5 sets/maand Extrusiekracht 63 ton tot 400 ton
Productiviteit 4tons/verschuiving naar 40 tons/verschuiving Stroomvoorziening Diesel -motoroptie
Typen ontladen Omdraaien, naar buiten duwen, doorsturen, handmatig tillen
Markeren

Y81F-200 Hydraulic Baling Press

,

1800x1400x900mm Scrap Baler Machine

,

400x400mm Metal Scrap Baler
Laat een bericht achter
Productomschrijving
Y81f-200 Steel Shaving Baling Press Machine
Product Overview

The Y81 series hydraulic metal baler efficiently compresses various metal scraps including steel, copper, aluminum, stainless steel, and automotive waste into compact bales. This machine reduces transportation costs, improves logistics efficiency, and is ideal for steel plants, recycling facilities, and metal processing industries.

Key Features
  • Hydraulic operation with manual or PLC automatic control options
  • Multiple discharge methods: turning over, pushing out, forwarding out, or manual lifting
  • No need for fixed foot screws - portable operation
  • Diesel engine compatible for areas with unreliable power supply
  • Customizable compression chamber and bale dimensions
  • Extrusion force from 63 to 400 tons (10 available grades)
  • Productivity ranging from 4 to 40 tons per shift
Technical Specifications
Attribute Value
Product Name Y81 series hydraulic metal baler
Condition New
Application Scrap metal processing
Nominal Force 125Tons ~1200Tons
Driven Type Hydraulic
Power 15KW~270KW
Voltage 21.5Mpa (Customizable)
Color Customizable
Automatic Grade Semi-Automatic
Model Specifications
Model Main Cyl.Force(ton) Press Box Size(mm) Bale Size(mm) Bale Weight(kg) Motor(KW)
Y81F-125 125 1200*700*600 300*300 50-70 15
Y81F-160 160 1600*1000*800 400*400 100-150 22
Y81F-200 200 1600*1200*800 400*400 120-220 37
Y81F-250 250 2000*1750*1200 500*500 300-500 60
Y81F-315 315 3000*2500*1200 600*600 400-700 90
Y81K-315 315 4000*3000*1300 700*700 800-1200 135
Y81F-400 400 3500*3000*1300 700*700 800-1300 135
Y81K-400 400 4000*3000*1300 700*700 900-1300 135
Commercial Terms
Term Detail
Minimum Order Quantity 1 Set
Price Negotiable
Payment Terms 30% T/T In Advance
Supply Ability 10 sets/month
Delivery Time As per requirement
Packaging Details Seaworthy packing
After-sales Service Engineers available for overseas service

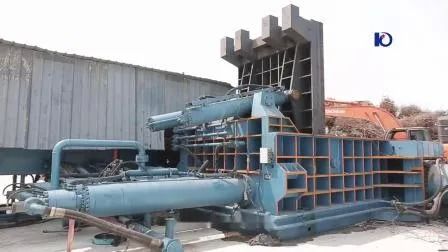

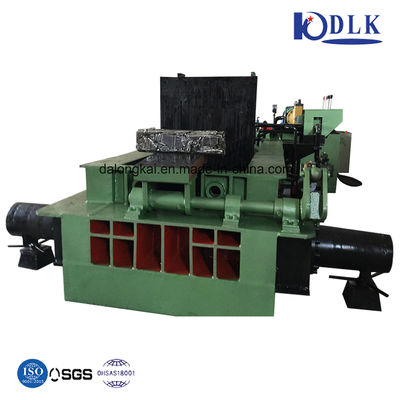

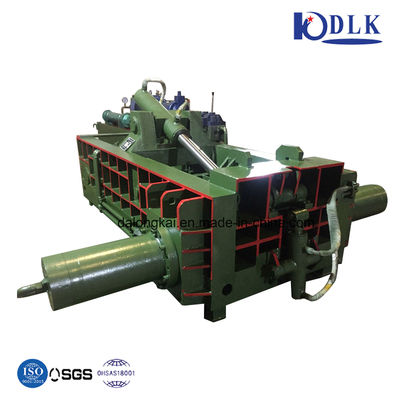

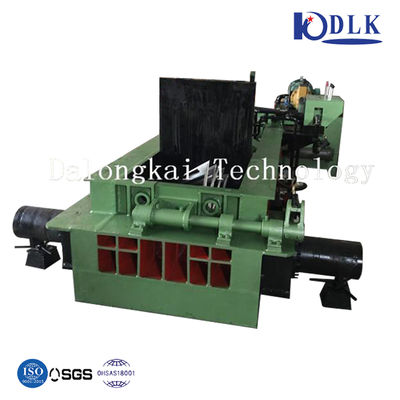

Product Images
Y81F-200 Hydraulic Baling Press with 1800x1400x900mm Press Box and 400x400mm Bale Size for Metal Scrap Recycling 0 Y81F-200 Hydraulic Baling Press with 1800x1400x900mm Press Box and 400x400mm Bale Size for Metal Scrap Recycling 1 Y81F-200 Hydraulic Baling Press with 1800x1400x900mm Press Box and 400x400mm Bale Size for Metal Scrap Recycling 2 Y81F-200 Hydraulic Baling Press with 1800x1400x900mm Press Box and 400x400mm Bale Size for Metal Scrap Recycling 3 Y81F-200 Hydraulic Baling Press with 1800x1400x900mm Press Box and 400x400mm Bale Size for Metal Scrap Recycling 4 Y81F-200 Hydraulic Baling Press with 1800x1400x900mm Press Box and 400x400mm Bale Size for Metal Scrap Recycling 5
Frequently Asked Questions
Q1: How can I get after-sales service?

We provide one year guarantee and lifelong maintenance. Spare parts are provided free if problems are caused by manufacturing defects. For user-caused issues, spare parts are available at cost. Direct technical support is always available.

Q2: Can I visit your factory before ordering?

Visitors are welcome at our factory located at 29# Panlongshan Road, Jiangyin city, Jiangsu province (214429), China. We're conveniently located near Shanghai Pudong Airport and can arrange airport pickup and hotel booking services.

Q3: Are you a factory or trading company?

We are a manufacturer with 20 years of experience, exporting 50-60% of our production.

Q4: How can I trust your company?

Our credentials include:

  • Third-party assessed national patents and CE, ISO certifications
  • Open factory inspection policy
  • 20 years of specialization in hydraulic balers and hydraulic shears

Q5: Is your price competitive?

We offer the best factory price for our high-quality machines, balancing superior product performance with excellent service.
