Y81F-160 Hydraulic Compactor Machine with 22 Kw Motor and 400x400mm Bale Size for Scrap Copper Recycling

  • Y81F-160 Hydraulic Compactor Machine with 22 Kw Motor and 400x400mm Bale Size for Scrap Copper Recycling
  • Y81F-160 Hydraulic Compactor Machine with 22 Kw Motor and 400x400mm Bale Size for Scrap Copper Recycling
  • Y81F-160 Hydraulic Compactor Machine with 22 Kw Motor and 400x400mm Bale Size for Scrap Copper Recycling
  • Y81F-160 Hydraulic Compactor Machine with 22 Kw Motor and 400x400mm Bale Size for Scrap Copper Recycling
  • Y81F-160 Hydraulic Compactor Machine with 22 Kw Motor and 400x400mm Bale Size for Scrap Copper Recycling
Certificering ISO
Min. bestelaantal 1

Contacteer me voor vrije steekproeven en coupons.

Whatsapp:0086 18588475571

wechat: 0086 18588475571

Skype: sales10@aixton.com

Als u om het even welke zorg hebt, verstrekken wij de online-Help van 24 uur.

x
Productdetails
Model nr. Y81F-160 Hoofdcyl.force 160 ton
Druk op de boxgrootte 1600*1000*800 (mm) Baalmaat 400*400 (mm)
Baalgewicht 100 ~ 150 (kg) Motorvermogen 22 ((kw)
Nominale kracht 125 tons ~ 1200 tons Aangedreven type Hydraulisch
Spanning 21.5Mpa, Aangepast Automatisch cijfer Semi-automatisch
Productiecapaciteit 5 sets/maand Extrusiekracht 63 ton tot 400 ton
Productiviteit 4tons/verschuiving naar 40 tons/verschuiving Typen ontladen Omdraaien, naar buiten duwen, doorsturen, handmatig tillen
Stroomopties Dieselmotor beschikbaar
Markeren

Y81F-160 Hydraulic Compactor Machine

,

22 Kw Motor Scrap Baler Machine

,

400x400mm Bale Size Hydraulic Metal Baler
Laat een bericht achter
Productomschrijving
Y81f-160 Hydraulic Compactor Machine for Scrap Copper
Product Overview

The Y81 series metal hydraulic baler efficiently compacts various metal scrap materials including steel, copper, aluminum, stainless steel, and automotive scrap into dense, transport-friendly bales. This machine reduces transportation costs while increasing loading efficiency.

Key Features
  • Processes multiple metal types into square, cylindrical, or octagonal bales
  • Hydraulic drive system with manual or PLC automatic control options
  • Multiple discharge methods: turning over, pushing out, forwarding out, or manual lifting
  • No foundation bolts required for installation
  • Diesel engine compatible for areas with unreliable power supply
  • Customizable compression chamber and bale dimensions
Technical Specifications
Attribute Details
Product Name Y81 series hydraulic metal baler
Condition New
Application Scrap metal processing
Nominal Force 125Tons ~1200Tons
Driven Type Hydraulic
Power 15KW~270KW
Voltage 21.5Mpa (Customizable)
Color Customizable
Automatic Grade Semi-Automatic
Commercial Terms
Term Details
Minimum Order Quantity 1 Set
Price Negotiable
Payment Terms 30% T/T In Advance
Supply Ability 10 sets/month
Delivery Time As per requirement
Packaging Details Seaworthy packing
After-sales Service Engineers available for overseas service
Model Specifications
Model Main Cyl.Force(ton) Press Box Size(mm) Bale Size(mm) Bale Weight(kg) Motor(KW)
Y81F-125 125 1200*700*600 300*300 50-70 15
Y81F-160 160 1600*1000*800 400*400 100-150 22
Y81F-200 200 1600*1200*800 400*400 120-220 37
Y81F-250 250 2000*1750*1200 500*500 300-500 60
Y81F-315 315 3000*2500*1200 600*600 400-700 90
Product Images

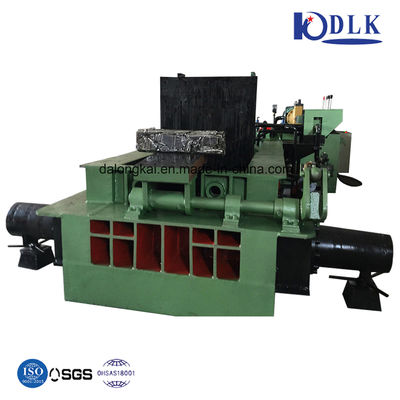

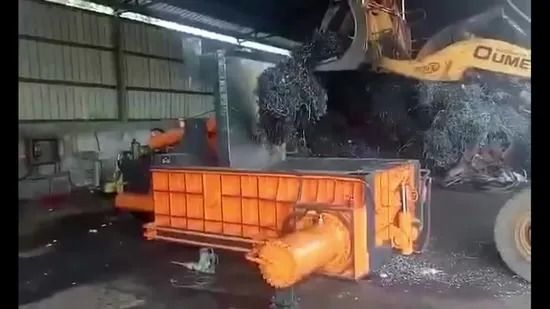

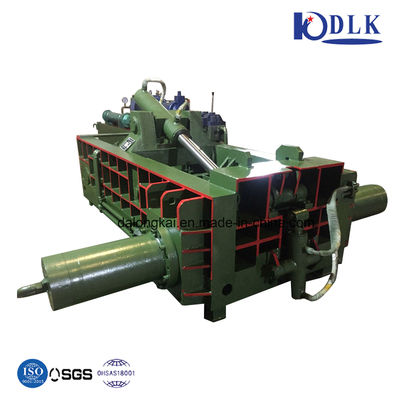

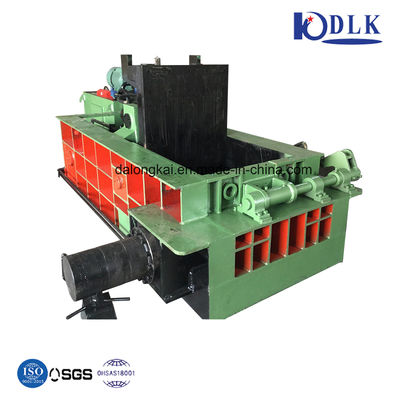

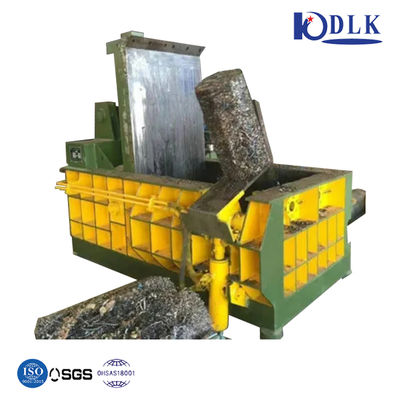

Y81F-160 Hydraulic Compactor Machine with 22 Kw Motor and 400x400mm Bale Size for Scrap Copper Recycling 0 Y81F-160 Hydraulic Compactor Machine with 22 Kw Motor and 400x400mm Bale Size for Scrap Copper Recycling 1 Y81F-160 Hydraulic Compactor Machine with 22 Kw Motor and 400x400mm Bale Size for Scrap Copper Recycling 2
Factory & Certification
Y81F-160 Hydraulic Compactor Machine with 22 Kw Motor and 400x400mm Bale Size for Scrap Copper Recycling 3 Y81F-160 Hydraulic Compactor Machine with 22 Kw Motor and 400x400mm Bale Size for Scrap Copper Recycling 4 Y81F-160 Hydraulic Compactor Machine with 22 Kw Motor and 400x400mm Bale Size for Scrap Copper Recycling 5
Frequently Asked Questions
Q1: How can I get after-sales service?

We provide one year guarantee and lifelong maintenance. Spare parts are provided free if problems are caused by manufacturing defects. For user-caused issues, spare parts are available at cost. Direct phone support is always available.

Q2: Can I visit your factory before ordering?

Yes, we welcome factory visits. Our facility is located at 29# Panlongshan Road, Jiangyin city, Jiangsu province (214429), China, near Shanghai Pudong Airport. We provide airport pickup and can assist with hotel arrangements.

Q3: Are you a factory or trading company?

We are a manufacturer with 20 years of experience, exporting 50-60% of our production.

Q4: How can I trust your company?
  • Certified with national patents, CE, and ISO standards
  • Factory inspections welcome - conveniently located near Shanghai Pudong airport
  • Specialized in hydraulic balers and shears with proven expertise
Q5: Is your price competitive?

We offer the best factory prices for our high-quality machines, backed by superior service and support.
