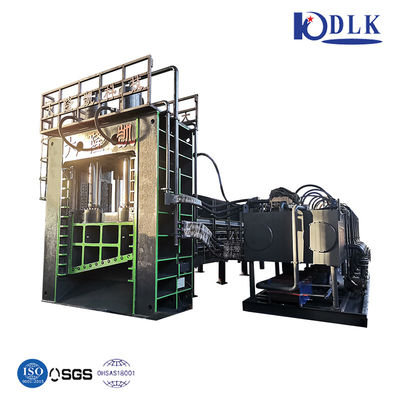

Gantry Shear with Automated Adjustments and Safety Mechanisms Featuring 42CrMo Blades for Enhanced Operator Protection

  • Gantry Shear with Automated Adjustments and Safety Mechanisms Featuring 42CrMo Blades for Enhanced Operator Protection
  • Gantry Shear with Automated Adjustments and Safety Mechanisms Featuring 42CrMo Blades for Enhanced Operator Protection
Certificering ISO
Min. bestelaantal 1
Prijs 36440
Productdetails
Model-NR. FS-2014 type Schrootontvezelmachine
Automatisering Halfautomatisch Controlesysteem PLC-besturing
Vermogenstype Hydraulisch Capaciteit 10-15 ton per uur
Stroom 110 kW Voedingspoortgrootte 1830*1220mm
Lengte na crush 100-200 mm Materiaal mes 42CrMo
Bladdikte 2075mm Aantal bladen 20-33 stuks
Machinegewicht 2100-48500 kg Grootte van de verpletterende holte 600*530mm tot 2500*1520mm
Productiecapaciteit 10 sets/maand
Laat een bericht achter
Productomschrijving
Gantry Shear Featuring Automated Adjustments and Safety Mechanisms
Service & Support
  • One year guarantee with lifelong maintenance support
  • Complimentary spare parts package including tool box and operation manual
  • Direct technical support via phone
  • Global service response within 3 days
Key Features
  • High alloy 42CrMo blades for superior strength, toughness, and break resistance
  • brand main electrical components for reliable performance
  • Automatic overload protection to prevent machine jams and damage
  • High torque operation with low speed, minimal noise, and maximum efficiency
Technical Specifications
Model Power (kw) Crushing Cavity Size (mm) Blade Thickness (mm) Number of Blades (pcs) Machine Weight (kg)
DSD60 5.5+5.5 600×530 20 30 2100
DSD80 7.5+7.5 800×530 20 40 2350
DSF80 15+15 800×800 40 20 4400
DSF100 18.5+18.5 1000×800 40 25 4550
DSF120 22+22 1200×800 40 30 5150
DSG100 22+22 1000×980 40 25 9100
DSG130 37+37 1300×980 40 32 12000
DSG160 45+45 1600×980 50 32 14200
DSK150 55+55 1500×1520 75 20 32200
DSK180 75+75 1800×1520 75 24 35000
DSK225 90+90 2250×1520 75 30 42600
DSK250 110+110 2500×1520 75 33 48500
DS Double-Shaft Shredder industrial machine in operation
Manufacturer Profile

Jiangsu Dalongkai Technology Co., Ltd. has been a trusted manufacturer in the waste recycling equipment industry for over a decade. As a dedicated Chinese manufacturer of scrap metal recycling equipment, our flagship products include shear balers, scrap balers, scrap shears, and recycling cranes. We also supply horizontal and vertical balers for compacting plastic, paper, cardboard, straw, textiles, and various other waste materials.

The Dalongkai brand has received critical acclaim both domestically and internationally. As a trusted waste recycling equipment manufacturer, we have successfully passed TUV certification and ISO9001 Quality Management System certification. We are currently in the process of obtaining European standards approvals including CE and UL certifications.
DS Double-Shaft Shredder

The DS double-shaft shredder features a robust construction comprising knife roller (spindle + blade), fixed knife, shredder box, box support, feed system, power system, and electrical control system. This industrial shredder is widely utilized for its low rotating speed and high torque characteristics, making it ideal for processing hard or large materials including waste paper, wood, garden waste, kitchen waste, medical waste, tires, plastic, household appliances, drums, and iron sheets.

Frequently Asked Questions
How can I get after-sales service?
We provide one year guarantee and lifelong maintenance. We will send you spare parts free of charge if problems are caused by manufacturing defects. For user-caused issues, we also provide spare parts at cost. Any problem can be addressed by calling us directly.
Can I visit your factory before ordering?
Yes, we welcome visits to our factory. Our address: 29# Panlongshan Road, Jiangyin City, Jiangsu Province, 214429, P.R China. We are located near Shanghai Pudong Airport and can provide airport pickup service. Hotel booking assistance is available.
Are you a factory or trading company?
We are a manufacturer with our own factory operating for 20 years, with export accounting for 50-60% of our business.
How can I trust your company?
With 20 years of professional design experience, we provide suitable suggestions and competitive pricing. We hold national patents and CE/ISO certifications for all equipment. Factory inspections are welcome, and we are conveniently located near Shanghai Pudong Airport. We specialize in hydraulic balers and hydraulic shears.
Is your price competitive?
We supply only high-quality machines and provide the best factory pricing based on superior products and comprehensive service support.
