WS-630 Hydraulic Gantry Shear with 8-15 T/H Production Rate 110kw Power and 420mm Cutting Height
Contacteer me voor vrije steekproeven en coupons.
Whatsapp:0086 18588475571
wechat: 0086 18588475571
Skype: sales10@aixton.com
Als u om het even welke zorg hebt, verstrekken wij de online-Help van 24 uur.
xProductdetails
| Modelnr. | Ws-630 | Max Cutting Force | 6300 kN |
|---|---|---|---|
| Meslengte | 1600MM | Productie | 8-15 t/h |
| Stroom | 110 kW | Snijhoogte | 420 mm |
| Scherende hydrocilinder | YG400/280 | Duw de hydrocilinder | YG280/200 |
| Hydraulische systeemdruk | <22 MPa | Snijlengte | 1400 mm |
| Scheertijden | 2-4 keer/min | Werkmodus | Mechanische laadmaterialen, drukknop- en plc-bediening |
| Vermogensspecificatie | 415V/3P 50Hz | De grootte van de olietank | 3000X2000X800 (4500L) |
| Koelmodus | Gedwongen luchtkoeling | ||
| Markeren | 8-15 T/H Production Rate Gantry Shear,110kw Power Scrap Shear,420mm Cutting Height Hydraulic Metal Cutting Machine |
||
Productomschrijving

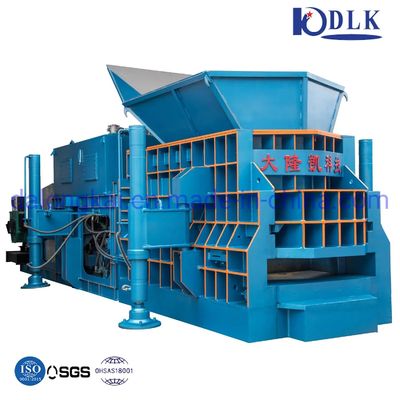

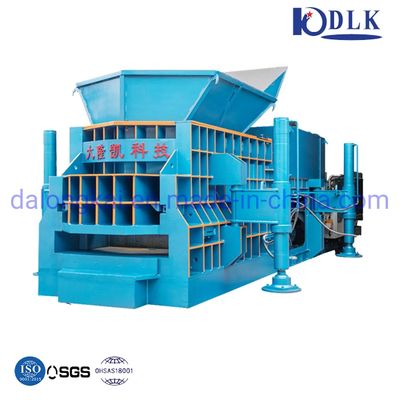

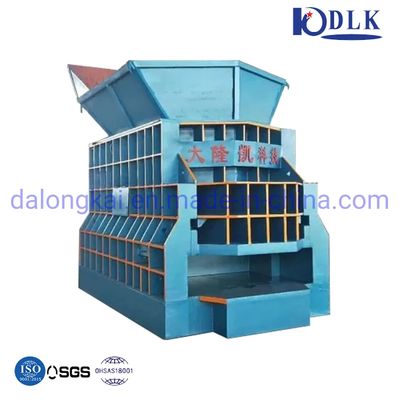

WS-630 Horizontal Metal Container Shear
Applications
The WS-630 scrap shear is designed for economical scrap processing. This machine features easy operation and flexible transportation with a roll on/roll off system. Various models are available to suit different requirements. The HPM series of horizontal balers work with manual belting.
Key Features
- Horizontal structure allows for both manual feeding and automatic feeding with conveyor
- PLC control and push-button operation ensure safe and reliable performance
- High output capacity for efficient scrap processing
WS-630 Container Shear Technical Parameters
| No. | Parameter Name and Content | Remark |
|---|---|---|
| 1 |
Shearing Hydro-Cylinder
Model: YG400/280
Quantity: 2
Nominal Thrust: 3150KNX2
|
|
| 2 |
Push Hydro-Cylinder
Model: YG280/200
Quantity: 1
Nominal Thrust: 1350KN
|
|
| 3 | Hydraulic System Working Pressure: <22Mpa | |
| 4 | Cutting Length/Height: 1400/420mm | |
| 5 | Shearing Times: 2-4 Times/Min | Empty load Load operation |
| 6 | Operating Mode: Mechanical Loading Materials, Push-Button & PLC Control | (With The Remote Control) |
| 7 | Power Specification: 415V/3P 50Hz | |
| 8 | Main Machine Power: 110Kw (not including system of cooling, heating and filtering) | |
| 9 | Oil Tank Size: 3000X2000X800 (4500L) | |
| 10 | Cooling Mode: Forced air cooling 52P 52P | |
| 10 |
Motor
Model: Y2-250M-4
Quantity: 2
Rated Speed: 1470 Rpm
Rated Power: 55 Kw
|
|
| 11 |
Pump
Model: A4V250
Quantity: 2
Nominal Displacement: 250ml/r
Rated Pressure: 31.5Mpa
|
Other Available Models
| Model | Max Cutting Force(KN) | Blade Length(mm) | Shear Height(mm) | Production Rate(t/h) | Power(KW) |
|---|---|---|---|---|---|
| WS-630 | 6300 | 1400/1600 | 300/420 | 8-15 | 110 |
| WS-800 | 8000 | 1600 | 420/500 | 12-18 | 220 |
| WS-1000 | 10000 | 1600/2100 | 420/500 | 15-25 | 360 |
About Jiangsu Dalongkai Technology Co., Ltd.
We specialize in manufacturing scrap metal recycling processing and hydraulic equipment. With strong technology, advanced manufacturing lines and complete testing devices, we produce various hydraulic equipment including:
- Hydraulic scrap balers
- Scrap shears (including container shears)
- Hydraulic metal balers
- Garbage compactors
- Briquetting presses
- Sheet metal shears
- Other non-standard equipment
Our products are exported worldwide to clients in Russia, India, South Africa, Southeast Asia, and other regions. Our machines are ideal for scrapyards, steel mills, scrap recycling processing industry, and nonferrous & ferrous smelting industry.
Product Images

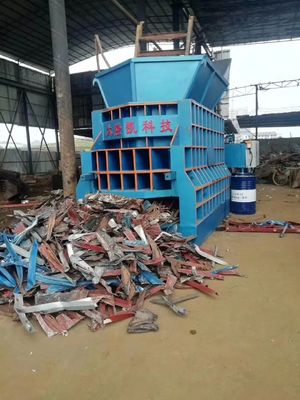

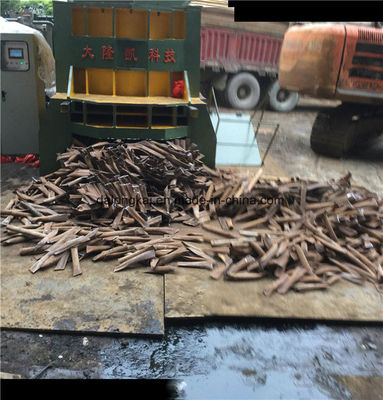

Finished Products
Package
