WS-630 Hydraulic Gantry Shear with 8-12t/H Production Rate 135kw Power and Horizontal Structure

  • WS-630 Hydraulic Gantry Shear with 8-12t/H Production Rate 135kw Power and Horizontal Structure
  • WS-630 Hydraulic Gantry Shear with 8-12t/H Production Rate 135kw Power and Horizontal Structure
  • WS-630 Hydraulic Gantry Shear with 8-12t/H Production Rate 135kw Power and Horizontal Structure
  • WS-630 Hydraulic Gantry Shear with 8-12t/H Production Rate 135kw Power and Horizontal Structure
Certificering ISO
Min. bestelaantal 1
Prijs 82000

Contacteer me voor vrije steekproeven en coupons.

Whatsapp:0086 18588475571

wechat: 0086 18588475571

Skype: sales10@aixton.com

Als u om het even welke zorg hebt, verstrekken wij de online-Help van 24 uur.

x
Productdetails
Max Cutting Force 6300 kN Meslengte 1400 mm
Productie 8-12T/H Stroom 135 kW
Nominale kracht 400ton Gedreven soort Hydraulisch
Maximale afschuiflengte 1600MM Spanning 21,5 mpa
Automatisch cijfer Automatisch Scheerbeurthoogte 300/420 mm
Modelnr. Ws-630 Productiecapaciteit 5 sets/maand
Meslengte 1400/1600 mm
Markeren

8-12t/H Production Rate Gantry Shear

,

135kw Power Hydraulic Metal Shear

,

Horizontal Structure Automatic Shear Machine
Laat een bericht achter
Productomschrijving

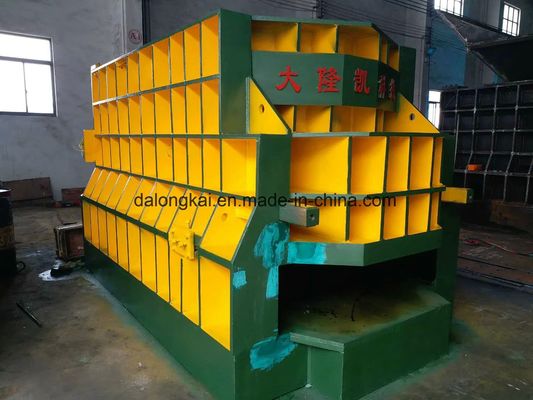

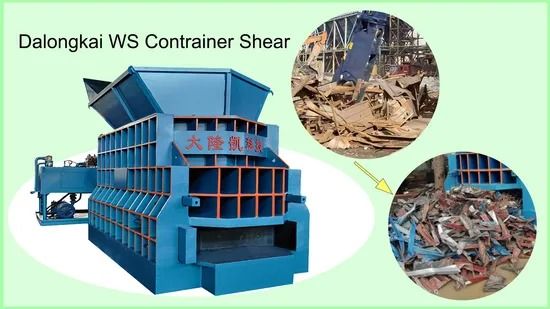

WS-630 Hydraulic Metal Structure Automatic Shear Machine
The WS Horizontal Metal Shear is designed for economical scrap metal processing, featuring easy operation and flexible transportation with a roll on/roll off system. Various models are available to suit different requirements.
Applications
Ideal for scrap metal processing. The HPM series of horizontal balers work with manual belting for efficient operation.
Key Features
  • Horizontal structure allows for manual or automatic feeding with conveyor
  • PLC control and push-button operation ensure safety and reliability
  • High output for efficient processing
Specifications
Product Name WS Horizontal Metal Shear
Condition New
Application Scrap metal
Nominal Force 400Ton
Driven Type Hydraulic
Max. Length To Shear 1600mm
Voltage 21.5Mpa, Customized
Color Customized
Automatic Grade Automatic
Commercial Terms
Minimum Order Quantity 1 Set
Price Negotiable
Payment Terms 30% T/T In Advance
Supply Ability 5 sets/month
Delivery Time As per requirement
Packaging Details Seaworthy packing
After-sales Service Engineers available for overseas service
Technical Specifications
Model Max Cutting Force (KN) Blade Length (mm) Shear Height (mm) Production Rate (t/h) Power (KW)
WS-400 4000 1000 300/420 4-7 74
WS-500 5000 1400/1600 300/420 6-9 90
WS-630 6300 1400/1600 300/420 8-15 135
WS-800 8000 1600 420/500 12-18 180
WS-1000 10000 1600/2100 420/500 15-25 225
