WS-315 Model Gantry Shear with 3150kn Max Cutting Force and 800mm Blade Length for Scrap Metal Processing
Contacteer me voor vrije steekproeven en coupons.
Whatsapp:0086 18588475571
wechat: 0086 18588475571
Skype: sales10@aixton.com
Als u om het even welke zorg hebt, verstrekken wij de online-Help van 24 uur.
xProductdetails
| Modelnr. | WS-315 | Max Cutting Force | 3150 kN |
|---|---|---|---|
| Meslengte | 800 mm | Productie | 3-5t/u |
| Stroom | 60 kW | Nominale kracht | 400ton |
| Gedreven soort | Hydraulisch | Maximale afschuiflengte | 1600MM |
| Spanning | 21,5 mpa | Automatisch cijfer | Automatisch |
| Scheerbeurthoogte | 300/420 mm | Productiecapaciteit | 5 sets/maand |
| Maximale snijkracht (WS-400) | 4000KN | Bladlengte (WS-400) | 1000 mm |
| Vermogen (WS-400) | 74 kW | ||
| Markeren | WS-315 Model Gantry Shear,3150kn Max Cutting Force Scrap Metal Shear,800mm Blade Length Horizontal Metal Shear |
||
Productomschrijving

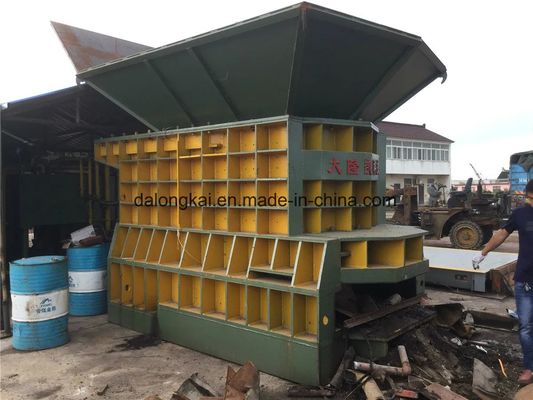

WS-315 Horizontal Scrap Metal Shear Machine
The WS Horizontal Metal Shear is designed for economical scrap processing with easy operation and flexible transportation via roll on/roll off system. Various models are available to suit different operational requirements.
Key Features
- Horizontal structure allows for manual or automatic feeding with conveyor
- PLC control with push-button operation ensures safety and reliability
- High output capacity for efficient scrap processing
- Works with manual belting (HPM series)
Technical Specifications
Product Name:
WS Horizontal Metal Shear
Condition:
New
Application:
Scrap metal
Nominal Force:
400Ton
Driven Type:
Hydraulic
Max. Length To Shear:
1600mm
Voltage:
21.5Mpa, Customized
Color:
Customized
Automatic Grade:
Automatic
Commercial Terms
Minimum Order Quantity:
1 Set
Price:
Negotiable
Payment Terms:
30% T/T In Advance
Supply Ability:
5 sets/month
Delivery Time:
As per your requirement
Packaging Details:
Seaworthy packing
After-sales Service:
Engineers available for overseas service
Model Specifications
| Model | Max Cutting Force (KN) | Blade Length (mm) | Shear Height (mm) | Production Rate (t/h) | Power (KW) |
|---|---|---|---|---|---|
| WS-400 | 4000 | 1000 | 300/420 | 4-7 | 74 |
| WS-500 | 5000 | 1400/1600 | 300/420 | 6-9 | 90 |
| WS-630 | 6300 | 1400/1600 | 300/420 | 8-15 | 135 |
| WS-800 | 8000 | 1600 | 420/500 | 12-18 | 180 |
| WS-1000 | 10000 | 1600/2100 | 420/500 | 15-25 | 225 |
