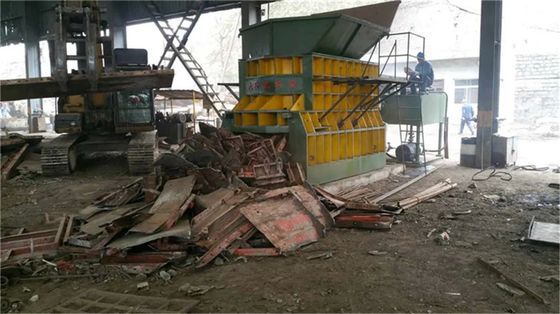

WS-500 Model Gantry Shear with 5000kn Max Cutting Force and 1400mm Blade Length for Scrap Metal Processing

  • WS-500 Model Gantry Shear with 5000kn Max Cutting Force and 1400mm Blade Length for Scrap Metal Processing
  • WS-500 Model Gantry Shear with 5000kn Max Cutting Force and 1400mm Blade Length for Scrap Metal Processing
  • WS-500 Model Gantry Shear with 5000kn Max Cutting Force and 1400mm Blade Length for Scrap Metal Processing
  • WS-500 Model Gantry Shear with 5000kn Max Cutting Force and 1400mm Blade Length for Scrap Metal Processing
Certificering ISO
Min. bestelaantal 1
Prijs 52000

Contacteer me voor vrije steekproeven en coupons.

Whatsapp:0086 18588475571

wechat: 0086 18588475571

Skype: sales10@aixton.com

Als u om het even welke zorg hebt, verstrekken wij de online-Help van 24 uur.

x
Productdetails
Modelnr. WS-500 Max Cutting Force 5000kN
Meslengte 1400 mm Productie 6-8t/h
Stroom 90 kW Nominale kracht 400ton
Gedreven soort Hydraulisch Maximale lengte 1600MM
Spanning 21,5 mpa Automatisch cijfer Automatisch
Scheerbeurthoogte 300/420 mm Productiecapaciteit 5 sets/maand
Kleur Aangepast Controletype PLC
Bedrijfstype Drukknop
Markeren

WS-500 Model Gantry Shear

,

5000kn Max Cutting Force Scrap Metal Shear

,

1400mm Blade Length Horizontal Metal Shear
Laat een bericht achter
Productomschrijving
WS-500 Horizontal Scrap Non-Ferrous Metal Shear Machine
The WS Horizontal Metal Shear is designed for economical scrap processing with easy operation and flexible transportation via a roll on/roll off system. Various models are available to meet different production requirements.
Applications
Ideal for processing scrap metal, the HPM series of horizontal balers work with manual belting for efficient material handling.
Key Features
  • Horizontal structure allows for manual or automatic feeding with conveyor
  • PLC control and push-button operation ensure safe and reliable performance
  • High output capacity for efficient production
Specifications
Product Name:
WS Horizontal Metal Shear
Condition:
New
Application:
Scrap metal
Nominal Force:
400Ton
Driven Type:
Hydraulic
Max. Length To Shear:
1600mm
Voltage:
21.5Mpa, Customized
Color:
Customized
Automatic Grade:
Automatic
Technical Specifications
Model Max Cutting Force (KN) Blade Length (mm) Shear Height (mm) Production Rate (t/h) Power (KW)
WS-400 4000 1000 300/420 4-7 74
WS-500 5000 1400/1600 300/420 6-9 90
WS-630 6300 1400/1600 300/420 8-15 135
WS-800 8000 1600 420/500 12-18 180
WS-1000 10000 1600/2100 420/500 15-25 225
Commercial Terms
Minimum Order Quantity:
1 Set
Price:
Negotiable
Payment Terms:
30% T/T In Advance
Supply Ability:
5 sets /month
Delivery Time:
As your requirement
Packaging Details:
Seaworthy packing
After-sales Service:
Engineers are available to overseas service
