Q15B-3150 Gantry Scrap Plate Shear Machine with 315 Ton Max Shear Force 1200mm Blade Length and Hydraulic Driven
Contacteer me voor vrije steekproeven en coupons.
Whatsapp:0086 18588475571
wechat: 0086 18588475571
Skype: sales10@aixton.com
Als u om het even welke zorg hebt, verstrekken wij de online-Help van 24 uur.
xProductdetails
| Model-NR. | Q15B-3150 | Maximale scheerkracht | 315 (ton) |
|---|---|---|---|
| Bladlengte | 1200 mm | Maximale snijspecificaties | 30/25*1000 (mm) |
| Scheerfrequentie | 4-7 (tijden/min) | Motorvermogen | 2*18,5 (kW) |
| Nominale kracht | 120 ton ~315 ton | Gedreven type | Hydraulisch |
| Spanning | 21.5Mpa, Aangepast | Automatische rangschikking | Halfautomatisch |
| Productiecapaciteit | 5 sets/maand | Vermogensbereik | 15 kW ~ 44 kW |
| Maximaal snijmateriaal | 30/25*1000 (mm) | Schuifkracht | 315 (ton) |
| Motorconfiguratie | 2*18,5 (kW) | ||
| Markeren | 315 Ton Max Shear Force Gantry Shear,1200mm Blade Length Scrap Plate Shear Machine,Hydraulic Driven Gantry Scrap Shear |
||
Productomschrijving

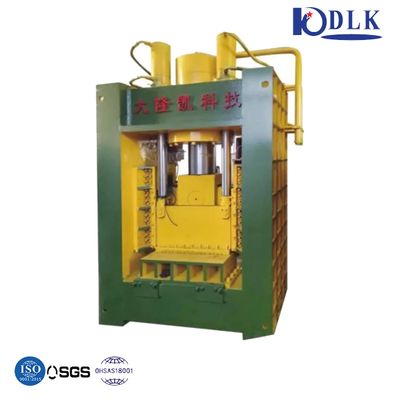

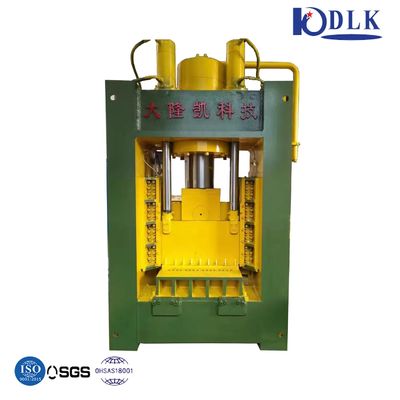

Q15b-3150 Gantry Scrap Plate Shear Machine
Product Overview
This hydraulic gantry shear machine is designed for processing various metal plates, cutting them into materials of different specifications. It effectively replaces flame cutting methods, significantly reducing operational costs while improving efficiency.
Technical Specifications
| Specification | Details |
|---|---|
| Model Number | Q15-1200~Q15-3150 |
| Certification | SGS |
| Place of Origin | Jiangsu P.R. China |
| Product Name | Gantry plate shear |
| Condition | New |
| Application | Scrap metal processing |
| Nominal Force | 120Tons ~315Tons |
| Driven Type | Hydraulic |
| Power | 15KW~44kW |
| Voltage | 21.5Mpa, Customized |
| Color | Customized |
| Automatic Grade | Semi-Automatic |
Performance Specifications
| Model | Shearing Force (ton) | Blade Length (mm) | Max. Cutting Material (mm) | Shearing Frequency (times/min) | Motor (KW) |
|---|---|---|---|---|---|
| Q15A-1200 | 120 | 600 | 18×500 | 4-7 | 15 |
| Q15A-1600 | 160 | 600 | 20×500 | 4-7 | 18.5 |
| Q15A-2000I | 200 | 600/800 | 25×500 | 4-7 | 22 |
| Q15A-2500I | 250 | 600 | 30×500 | 4-7 | 22 |
| Q15A-2500II | 250 | 800 | 30×700 | 4-7 | 2×15 |
| Q15A-3150 | 315 | 800 | 30×700 | 4-7 | 45 |
| Q15A-4000 | 400 | 800 | 35×700 | 4-7 | 2×22 |
| Q15A-5000 | 500 | 900 | 40×800 | 4-7 | 2×45 |
| Q15B-1600 | 160 | 1200 | 16/12×1000 | 4-7 | 18.5 |
| Q15B-2000 | 200 | 1200 | 18/16×1000 | 4-7 | 22 |
| Q15B-2500I | 250 | 1200/1600 | 25/20×1000 | 4-7 | 2×18.5 |
| Q15B-3150 | 315 | 1200 | 30/25×1000 | 4-7 | 2×18.5 |

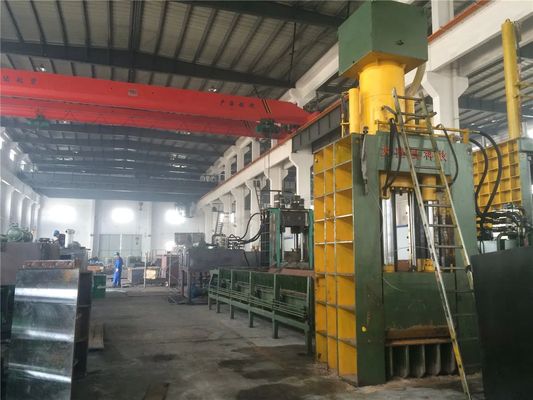

Product Images
Recommended Products
Factory & Certification
Commercial Terms
| Term | Details |
|---|---|
| Minimum Order Quantity | 1 Set |
| Price | Negotiable |
| Payment Terms | 30% T/T In Advance |
| Supply Ability | 10 sets/month |
| Delivery Time | As per customer requirement |
| Packaging Details | Seaworthy packing |
| After-sales Service | Engineers available for overseas service and technical support |
Frequently Asked Questions
Q1: How can I get after-sales service?
We provide one year guarantee and lifelong maintenance. We will send you spare parts free of charge if problems are caused by manufacturing defects. For issues resulting from improper operation, we also provide spare parts at cost. Our technical support team is available for direct consultation.
Q2: Can I visit your factory before placing an order?
Absolutely, we welcome you to visit our factory. Our location at 29# Panlongshan Road, Jiangyin city, Jiangsu province, 214429, P.R China is conveniently situated near Shanghai Pudong Airport. We provide airport pickup and hotel booking services for your convenience.
Q3: Are you a factory or trading company?
We are a manufacturer with over 20 years of experience. Our export business accounts for 50-60% of our total operations.
Q4: How can I trust your company?
With 20 years of professional design experience, we provide suitable technical suggestions and competitive pricing. Our credentials include third-party assessments, national patents, and CE, ISO certifications for all equipment. Our proximity to Shanghai Pudong airport makes factory inspections convenient. We specialize in hydraulic balers and hydraulic shears with proven performance.
Q5: Is your price competitive?
We supply only high-quality machinery and provide the best factory prices based on superior product quality and comprehensive service support.
