Q15B-1600 Gantry Shear with 160 Ton Max Shear Force 1200mm Blade Length and 16/12*1000mm Max Cutting for Scrap Metal Recycling

  • Q15B-1600 Gantry Shear with 160 Ton Max Shear Force 1200mm Blade Length and 16/12*1000mm Max Cutting for Scrap Metal Recycling
  • Q15B-1600 Gantry Shear with 160 Ton Max Shear Force 1200mm Blade Length and 16/12*1000mm Max Cutting for Scrap Metal Recycling
  • Q15B-1600 Gantry Shear with 160 Ton Max Shear Force 1200mm Blade Length and 16/12*1000mm Max Cutting for Scrap Metal Recycling
  • Q15B-1600 Gantry Shear with 160 Ton Max Shear Force 1200mm Blade Length and 16/12*1000mm Max Cutting for Scrap Metal Recycling
  • Q15B-1600 Gantry Shear with 160 Ton Max Shear Force 1200mm Blade Length and 16/12*1000mm Max Cutting for Scrap Metal Recycling
  • Q15B-1600 Gantry Shear with 160 Ton Max Shear Force 1200mm Blade Length and 16/12*1000mm Max Cutting for Scrap Metal Recycling
Certificering ISO
Min. bestelaantal 1
Prijs 14300

Contacteer me voor vrije steekproeven en coupons.

Whatsapp:0086 18588475571

wechat: 0086 18588475571

Skype: sales10@aixton.com

Als u om het even welke zorg hebt, verstrekken wij de online-Help van 24 uur.

x
Productdetails
Model-NR. Q15B-1600 Maximale scheerkracht 160 (Ton)
Bladlengte 1200 mm Maximale snijspecificaties 16/12*1000 (mm)
Scheerfrequentie 4-7 (tijden/min) Motorvermogen 22 ((kw)
Nominale kracht 120 ton ~315 ton Gedreven type Hydraulisch
Spanning 21,5 mpa Automatische rangschikking Halfautomatisch
Productiecapaciteit 5 sets/maand Schuifkracht 160 (Ton)
Maximaal snijmateriaal 16/12*1000 (mm) Motor 18,5 (kw)
Stroom 15 kW ~ 44 kW
Markeren

160 Ton Max Shear Force Gantry Shear

,

1200mm Blade Length Steel Plate Shear Machine

,

16/12*1000mm Max Cutting Hydraulic Shear
Laat een bericht achter
Productomschrijving
Q15b-1600 Gantry Steel Plate Shear Machine
This hydraulic gantry plate shear machine is designed for processing various steel plates, cutting them into materials of different specifications. It effectively replaces flame cutting methods, significantly reducing operational costs while improving efficiency.
Technical Specifications
Specification Details
Model Number Q15-1200~Q15-3150
Certification SGS
Place of Origin Jiangsu P.R. China
Product Name Gantry Plate Shear
Condition New
Application Scrap Metal Processing
Nominal Force 120Tons ~315Tons
Driven Type Hydraulic
Power 15KW~44kW
Voltage 21.5Mpa, Customized
Color Customized
Automatic Grade Semi-Automatic
Performance Specifications
Model Shearing Force (ton) Blade Length (mm) Max. Cutting Material (mm) Shearing Frequency (times/min) Motor (KW)
Q15A-1200 120 600 18*500 4-7 15
Q15A-1600 160 600 20*500 4-7 18.5
Q15A-2000I 200 600/800 25*500 4-7 22
Q15A-2500I 250 600 30*500 4-7 22
Q15A-2500II 250 800 30*700 4-7 2*15
Q15A-3150 315 800 30*700 4-7 45
Q15A-4000 400 800 35*700 4-7 2*22
Q15A-5000 500 900 40*800 4-7 2*45
Q15B-1600 160 1200 16/12*1000 4-7 18.5
Q15B-2000 200 1200 18/16*1000 4-7 22
Q15B-2500I 250 1200/1600 25/20*1000 4-7 2*18.5
Q15B-3150 315 1200 30/25*1000 4-7 2*18.5
Commercial Terms
Term Details
Minimum Order Quantity 1 Set
Price Negotiable
Payment Terms 30% T/T In Advance
Supply Ability 10 sets/month
Delivery Time As per requirement
Packaging Details Seaworthy packing
After-sales Service Engineers available for overseas service
Product Images
Q15B-1600 Gantry Shear with 160 Ton Max Shear Force 1200mm Blade Length and 16/12*1000mm Max Cutting for Scrap Metal Recycling 0 Q15B-1600 Gantry Shear with 160 Ton Max Shear Force 1200mm Blade Length and 16/12*1000mm Max Cutting for Scrap Metal Recycling 1 Q15B-1600 Gantry Shear with 160 Ton Max Shear Force 1200mm Blade Length and 16/12*1000mm Max Cutting for Scrap Metal Recycling 2 Q15B-1600 Gantry Shear with 160 Ton Max Shear Force 1200mm Blade Length and 16/12*1000mm Max Cutting for Scrap Metal Recycling 3

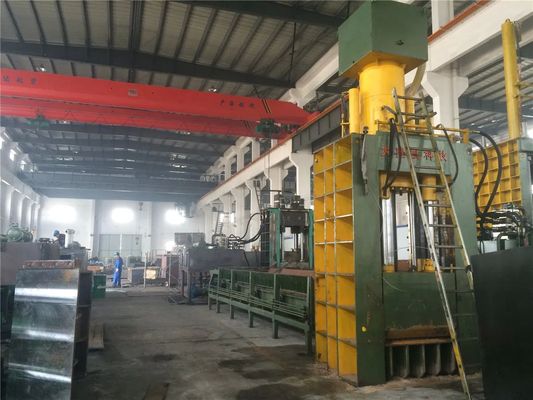

Factory & Certifications
Q15B-1600 Gantry Shear with 160 Ton Max Shear Force 1200mm Blade Length and 16/12*1000mm Max Cutting for Scrap Metal Recycling 4 Q15B-1600 Gantry Shear with 160 Ton Max Shear Force 1200mm Blade Length and 16/12*1000mm Max Cutting for Scrap Metal Recycling 5 Q15B-1600 Gantry Shear with 160 Ton Max Shear Force 1200mm Blade Length and 16/12*1000mm Max Cutting for Scrap Metal Recycling 6
Frequently Asked Questions
Q1: How can I get after-service support?
We provide one year guarantee and lifelong maintenance. We will send you spare parts free of charge if problems are caused by manufacturing defects. For user-caused issues, we provide spare parts at cost. Direct phone support is available for any technical questions.
Q2: Can I visit your factory before placing an order?
Yes, we welcome factory visits. Our facility is located at 29# Panlongshan Road, Jiangyin City, Jiangsu Province, 214429, P.R China. We are conveniently located near Shanghai Pudong Airport and provide airport pickup and hotel booking services.
Q3: Are you a factory or trading company?
We are a manufacturer with our own factory operating for 20 years. Export business constitutes 50-60% of our operations.
Q4: How can I trust your company?
With 20 years of professional design experience, we provide suitable technical suggestions and competitive pricing. Our credentials include third-party assessments, national patents, and CE, ISO certifications for all equipment. Factory inspections are welcome, and we specialize in hydraulic balers and hydraulic shears.
Q5: Is your price competitive?
We supply only high-quality machines and provide the best factory pricing based on superior products and comprehensive service support.
