PSX-1500 Hydraulic Drive Scrap Shredder with Hard Alloy Cutter for Fine Grinding of Scrap Metal
Productdetails
| Model-NR. | PSX-1500 | Motor | 40-50 (T/H) |
|---|---|---|---|
| Type | Hamerbreker | Drijfveer | Hydraulisch |
| Degree van vermaling | Fijne slijpmachine | Verpletterende stijl | Slijpen en impact |
| Beginsel | Rolensnijden | Snijmateriaal | Harde Legering |
| Druksterkte | > 300 MPA | Nominale kracht | 400 ton ~ 4500 ton |
| Stroom | 400 kW ~ 4500 kW | Spanning | 21.5Mpa, Aangepast |
| Automatische rangschikking | Automatisch | Feed openingsbreedte | 2500 mm |
| Capaciteit | 40-50 (T/H) | ||
| Markeren | Hydraulic Drive Scrap Shredder,Fine Grinding Scrap Metal Shear,Hard Alloy Cutter Hammer Crusher |
||
Productomschrijving

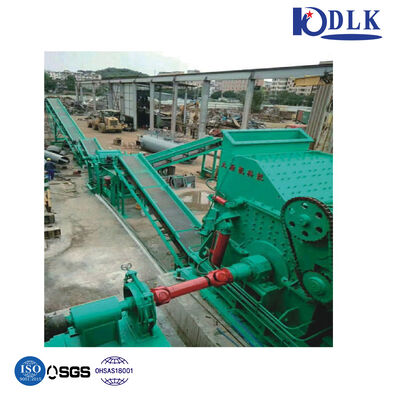

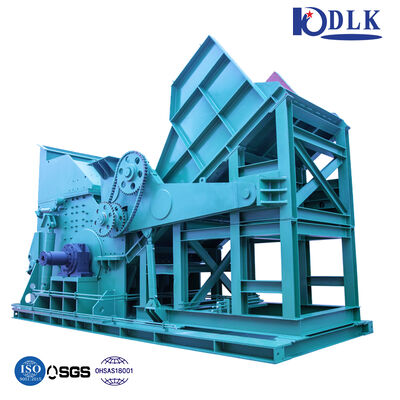

PSX-1500 Scrap Shredder Line Machine
Product Overview
The PSX Scrap Steel Shredder Line is engineered to process various light and thin materials into pure charge for steel making operations.
Applications
This industrial shredder efficiently processes:
- Discarded automobiles (excluding tires, gasoline cylinders, tanks, engines, and gear boxes)
- Tin plate categories
- Household appliances (excluding motors, compressors, and axles)
- Bicycle bodies and similar materials
- Empty tanks (excluding liquids, oil paint, etc.)
- Other suitable shreddable materials

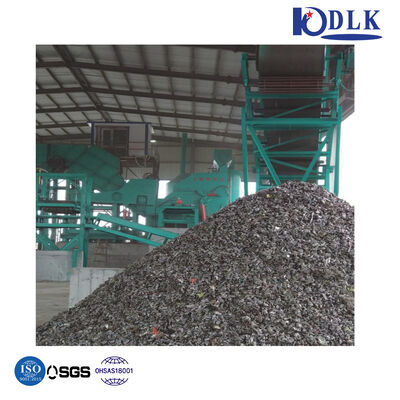

Through smashing and compressing, the shredder removes impurities and increases material density, reducing transportation and smelting costs while providing high-quality furnace charge for steel plants.
Technical Specifications
| Specification | Details |
|---|---|
| Product Name | PSX Scrap Steel Shredder Line |
| Condition | New |
| Application | Scrap metal |
| Nominal Force | 400Tons ~ 4500Tons |
| Driven Type | Hydraulic |
| Power | 400KW ~ 4500kW |
| Voltage | 21.5Mpa, Customized |
| Color | Customized |
| Automatic Grade | Automatic |
Performance Specifications
| Model | Feed Opening Width (mm) | Power (KW/HP) | Capacity (t/h) |
|---|---|---|---|
| PSX-400/450 | 1200 | 400KW/450KW/535HP | 6-10 |
| PSX-750 | 2200 | 750(1000) | 15-20 |
| PSX-900 | 2200 | 900(1200) | 20-30 |
| PSX-1200 | 2500 | 1200(1600) | 25-40 |
| PSX-1500 | 2500 | 1500(2000) | 40-50 |
| PSX-2000 | 2500 | 2000 | 50-60 |
| PSX-2250 | 2500 | 2250(3000) | 60-80 |
| PSX-3000 | 2500 | 3000(4000) | 80-100 |
| PSX-4500 | 2500 | 4500(6000) | 100-160 |
Commercial Terms
| Minimum Order Quantity | 1 Set |
| Price | Negotiable |
| Payment Terms | 30% T/T In Advance |
| Supply Ability | 6 sets /year |
| Delivery Time | As per requirement |
| Packaging Details | Seaworthy packing |
| After-sales Service | Engineers available for overseas service |
