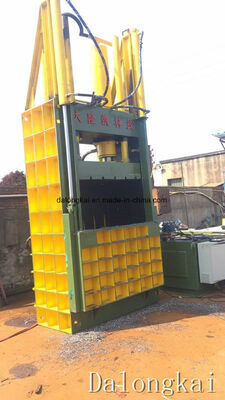

Y82-400 Hydraulic Vertical Baler Machine with 400 Ton Force and Computerized Control for Waste Paper Baling
Productdetails
| Model-NR. | Y82-400 | materiaal verwerkt | Plastic fles |
|---|---|---|---|
| kunststof soort | HUISDIER | Schroef | Dubbele schroef |
| Automatisering | Niet Automatisering | Geautomatiseerd | Geautomatiseerd |
| Hoofdcyl.force | 400 Ton | grootte van de persdoos | 1500*1000*3000 (mm) |
| Baalsectie | 1500*1000 (mm) | Stroom | 90 (kW) |
| Bale ontlaadmethode | Tas duwen | Structuur | Weefgetouw onderdelen |
| Productiecapaciteit | 5 sets/maand | Nominale kracht | 4000KN/400t |
| Kamergrootte | 1500*1000*1600 mm | ||
| Markeren | 400 Ton Hydraulic Vertical Baler Machine,Vertical Structure Paper Baler Machine,Computerized Waste Paper Baling Machine |
||
Productomschrijving
Y82-400 Hydraulic Vertical Baler Machine
Applications
- Compressing and baling woven bags/cloth, waste paper, and scrap paper for efficient transportation and storage
- Compressing and baling wool/wool balls
Key Features
- Baling press pressure ranges from 15 tons to 400 tons with complete specification range
- Hydraulic pressure drive with overhead type oil cylinder, operates without underground foundation
- All oil cylinders use imported sealing rings for reliable quality and extended service life
- Customizable package block size and compression chamber dimensions according to customer requirements
Technical Specifications
General Information
| Model Number | Y82-250~Y82-1600 |
| Certification | SGS |
| Place of Origin | Jiangsu P.R. China |
Commercial Terms
| Minimum Order Quantity | 1 Set |
| Price | Negotiable |
| Payment Terms | 30% T/T In Advance |
| Supply Ability | 15 sets/month |
| Delivery Time | As per requirement |
| Packaging Details | Seaworthy packing |
| After-sales Service | Engineers available for overseas service |
Baler Specifications for Paper/Plastic
| No. | Model | Nominal Force | Chamber Size | Bale Section | Power | Bale Discharging Method |
|---|---|---|---|---|---|---|
| 1 | Y82-25T | 250KN/25t | 1080×580×1500 mm | 1080×580mm | 15KW | Turn-out |
| 2 | Y82-63T | 630KN/63t | 1080×750×1500 mm | 1080×750mm | 15KW | Turn-out |
| 3 | Y82-100T | 1000KN/100t | 1100×700×1600 mm | 1100×700mm | 22KW | Turn-out |
| 4 | Y82-160T | 1600KN/160t | 1100×700×1600 mm | 1100×700mm | 22KW | Turn-out |
| 5 | Y82-200 | 2000KN/200t | 1500×1000×1600 mm | 1500×1000mm | 37KW | Turn-out |
| 6 | Y82-250 | 2500KN/250t | 1500×1000×1600 mm | 1500×1000mm | 44KW | Turn-out or PLC control |
| 7 | Y82-315 | 3150KN/315t | 2200×1100×3000 mm | 2200×1100mm | 60KW | |
| 8 | Y82-400 | 4000KN/400t | 1500×1000×1600 mm | 1500×1000mm | 90KW |
Recommended Products
Manufacturing Facility
Our Team
Certification
Frequently Asked Questions
Q1: How can I get after-sales service?
We provide one year guarantee and lifelong maintenance. We will send you spare parts free of charge if problems are caused by us. For man-made problems, we also provide spare parts at cost. Any issues can be addressed by calling us directly.
Q2: Can I visit your factory before ordering?
Yes, we welcome factory visits. Our factory address: 29# Panlongshan Road, Jiangyin city, Jiangsu province, 214429, P.R China. We are near Shanghai Pudong Airport and provide airport pickup and hotel booking services.
Q3: Are you a factory or trading company?
We are a manufacturer with our own factory operating for 20 years, with 50-60% export proportion.
Q4: How can I trust your company?
With 20 years of professional design experience, we provide suitable suggestions and competitive pricing. We hold national patents, CE, and ISO certifications for all equipment. Factory inspections are welcome, and we specialize in hydraulic balers and hydraulic shears.
Q5: Is your price competitive?
We supply only high-quality machines and provide the best factory price based on superior products and service.
