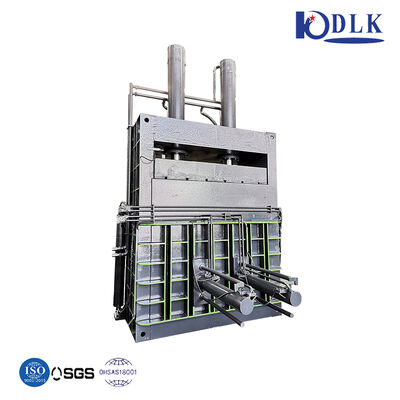

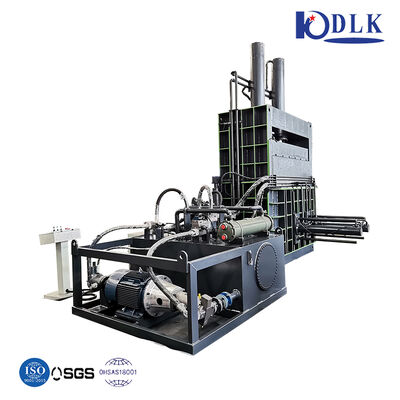

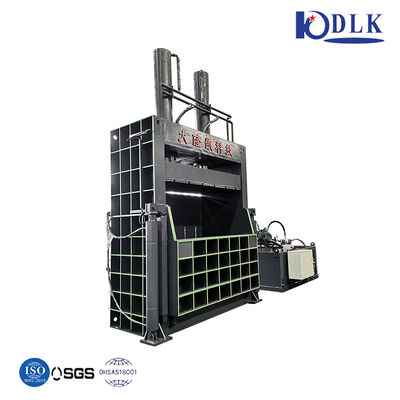

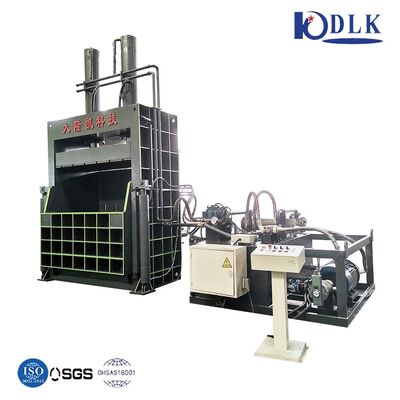

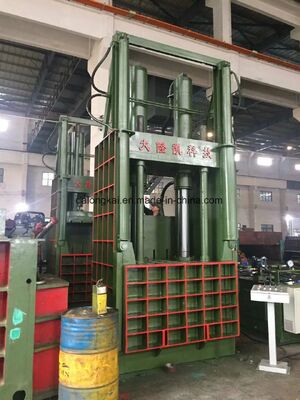

Y82-400 400 Ton Hydraulic Vertical Baler Machine with 1500*1000*3000mm Press Box Size and Four-Column Hydraulic Press
Productdetails
| Model-NR. | Y82-400 | Hoofdcyl.force | 400 Ton |
|---|---|---|---|
| grootte van de persdoos | 1500*1000*3000 (mm) | Baalsectie | 1500*1000 (mm) |
| Stroom | 90 (kW) | Bale ontlaadmethode | Tas duwen |
| Type | Hydraulische pers met vier kolommen | Nominale kracht | 4000KN/400t |
| Kamergrootte | 1500*1000*1600 mm | Afdichting oliecilinder | Geïmporteerde afdichtringen |
| Drukbereik | 15 ton tot 400 ton | Productiecapaciteit | 5 sets/maand |
| Levering vermogen | 15set/maand | Min. bestelaantal | 1 Instellen |
| Levertijd | Als uw vereiste | ||
| Markeren | 400 Ton Hydraulic Vertical Baler Machine,1500*1000*3000mm Press Box Size Scrap Recycling Baler,Four-Column Hydraulic Press Paper Baler Machine |
||
Productomschrijving
Y82-400 Scrap Recycling Hydraulic Vertical Baler Machine
Applications
This hydraulic vertical baler is designed for efficient compression and baling of various materials:
- Woven bags, cloth, waste paper, and scrap paper for convenient transportation and storage
- Wool and wool balls for industrial processing
Key Features
- Baling press pressure ranges from 15 tons to 400 tons with complete specification options
- Hydraulic pressure drive system with overhead oil cylinder design, operates without underground foundation
- All oil cylinders utilize imported sealing rings for reliable quality and extended service life
- Customizable package block size and compression chamber dimensions according to customer requirements
Product Specifications
| No. | Model | Nominal Force | Chamber Size | Bale Section | Power | Bale Discharging Method |
|---|---|---|---|---|---|---|
| 1 | Y82-25T | 250KN/25t | 1080×580×1500 mm | 1080×580mm | 15KW | Turn-out |
| 2 | Y82-63T | 630KN/63t | 1080×750×1500 mm | 1080×750mm | 15KW | Turn-out |
| 3 | Y82-100T | 1000KN/100t | 1100×700×1600 mm | 1100×700mm | 22KW | Turn-out |
| 4 | Y82-160T | 1600KN/160t | 1100×700×1600 mm | 1100×700mm | 22KW | Turn-out |
| 5 | Y82-200 | 2000KN/200t | 1500×1000×1600 mm | 1500×1000mm | 37KW | Turn-out |
| 6 | Y82-250 | 2500KN/250t | 1500×1000×1600 mm | 1500×1000mm | 44KW | Turn-out or PLC control |
| 7 | Y82-315 | 3150KN/315t | 2200×1100×3000 mm | 2200×1100mm | 60KW | |
| 8 | Y82-400 | 4000KN/400t | 1500×1000×1600 mm | 1500×1000mm | 90KW |
Product Attributes
| Model Number | Y82-250~Y82-1600 |
| Certification | SGS |
| Place of Origin | Jiangsu P.R. China |
Commercial Terms
| Minimum Order Quantity | 1 Set |
| Price | Negotiable |
| Payment Terms | 30% T/T In Advance |
| Supply Ability | 15 sets per month |
| Delivery Time | As per your requirement |
| Packaging Details | Seaworthy packing |
| After-sales Service | Engineers are available for overseas service |
Manufacturer Profile
Dalongkai Technology Co., Ltd. specializes in the research, development, and manufacturing of hydraulic machinery and equipment for the scrap metal recycling industry. We are committed to contributing to renewable resources and environmental protection initiatives. Our product portfolio includes metal balers and metal shears designed to efficiently handle metal scrap, helping customers increase profitability while reducing operational costs.
