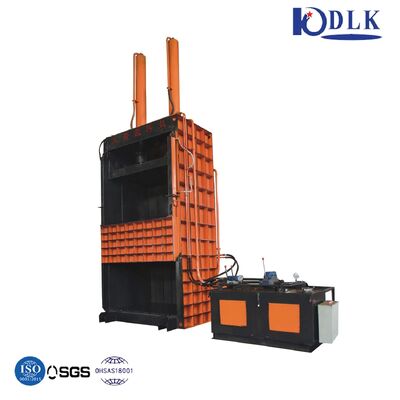

Y82-160 Vertical Hydraulic Baler Machine with 160 Ton Force 1100x700x1600mm Press Box and 22KW Power
Productdetails
| Model-NR. | Y82-160 | Hoofdcyl.force | 160 ton |
|---|---|---|---|
| grootte van de persdoos | 1100*700*1600 (mm) | Baalsectie | 1100*700 (mm) |
| Stroom | 22 ((kw) | Baal het lossen | Tas duwen |
| materiaal verwerkt | Plastic fles | kunststof soort | HUISDIER |
| Automatisering | Niet Automatisering | Geautomatiseerd | Niet-geautomatiseerd |
| Productiecapaciteit | 5 sets/maand | Nominale kracht | 1600kn/160t |
| Kamergrootte | 1100*700*1600 mm | Oliecilinder | Overheadtype |
| verzegelende ringen | Geïmporteerd | ||
| Markeren | 160 Ton Force Vertical Hydraulic Baler Machine,1100x700x1600mm Press Box Paper Baler Machine,22KW Power Y82-160 Baler |
||
Productomschrijving
Y82-160 Paper Vertical Hydraulic Baler Machine
Applications
- Compressing and baling woven bags/cloth, waste paper, and scrap paper for efficient transportation and storage
- Compressing and baling wool/wool balls
Key Features
- Baling press pressure ranges from 15 tons to 400 tons with complete specification options
- Hydraulic pressure drive with overhead type oil cylinder, operates without underground foundation
- All oil cylinders use imported sealing rings for reliable quality and extended service life
- Customizable package block size and compression chamber dimensions according to customer requirements
Product Specifications
Basic Information
| Model Number | Y82-250~Y82-1600 |
| Certification | SGS |
| Place of Origin | Jiangsu P.R. China |
Commercial Terms
| Minimum Order Quantity | 1 Set |
| Price | Negotiable |
| Payment Terms | 30% T/T In Advance |
| Supply Ability | 15 sets/month |
| Delivery Time | As per requirement |
| Packaging Details | Seaworthy packing |
| After-sales Service | Engineers available for overseas service |
Technical Specifications
| No. | Model | Nominal Force | Chamber Size | Bale Section | Power | Bale Discharging Method |
|---|---|---|---|---|---|---|
| 1 | Y82-25T | 250KN/25t | 1080×580×1500 mm | 1080×580mm | 15KW | Turn-out |
| 2 | Y82-63T | 630KN/63t | 1080×750×1500 mm | 1080×750mm | 15KW | Turn-out |
| 3 | Y82-100T | 1000KN/100t | 1100×700×1600 mm | 1100×700mm | 22KW | Turn-out |
| 4 | Y82-160T | 1600KN/160t | 1100×700×1600 mm | 1100×700mm | 22KW | Turn-out |
| 5 | Y82-200 | 2000KN/200t | 1500×1000×1600 mm | 1500×1000mm | 37KW | Turn-out |
| 6 | Y82-250 | 2500KN/250t | 1500×1000×1600 mm | 1500×1000mm | 44KW | Turn-out or PLC control |
| 7 | Y82-315 | 3150KN/315t | 2200×1100×3000 mm | 2200×1100mm | 60KW | |
| 8 | Y82-400 | 4000KN/400t | 1500×1000×1600 mm | 1500×1000mm | 90KW |
Product Gallery
Frequently Asked Questions
How can I get after-sales service?
We provide one year guarantee and lifelong maintenance. We will send you spare parts free of charge if problems are caused by us. For man-made problems, we also provide spare parts at cost. You can contact us directly for any issues.
Can I visit your factory before ordering?
Yes, welcome to visit our factory at 29# Panlongshan Road, Jiangyin city, Jiangsu province, 214429, P.R China. Our factory is near Shanghai Pudong Airport and we can provide airport pickup and hotel booking services.
Are you a factory or trading company?
We are a manufacturer with our own factory operating for 20 years, with export proportion of 50-60%.
How can I trust your company?
With 20 years of professional design experience, we provide suitable suggestions and competitive pricing. We hold national patents, CE, and ISO certifications for all equipment. You're welcome to inspect our facility anytime, located near Shanghai Pudong airport. We specialize in hydraulic balers and hydraulic shears.
Is your price competitive?
We supply only high-quality machines and provide the best factory price based on superior products and service.
