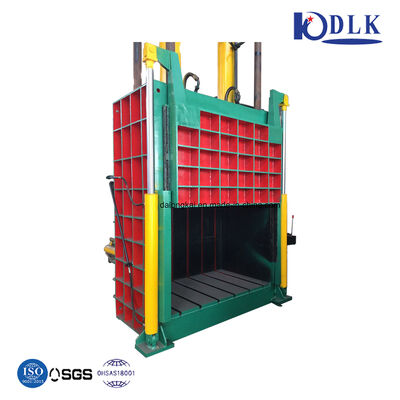

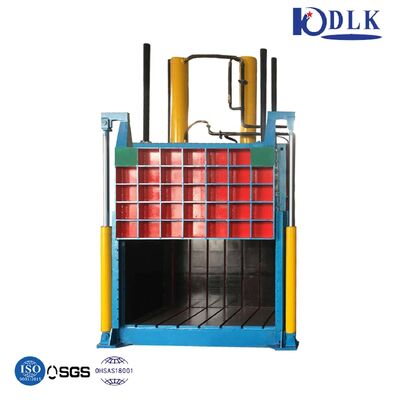

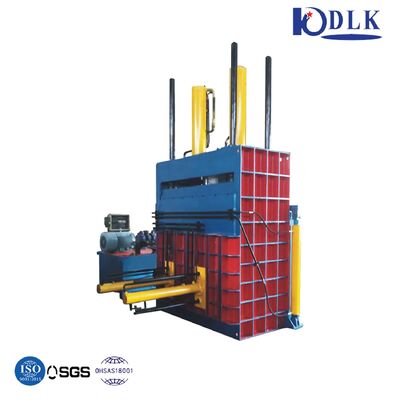

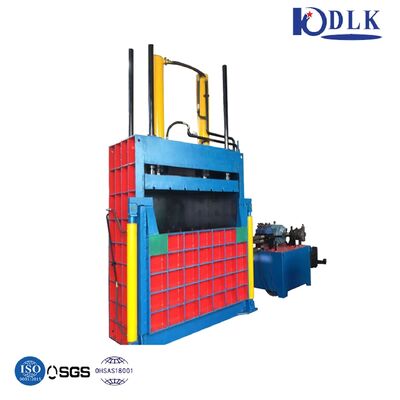

Y82T-100 Vertical Baler Machine 100 Ton Stainless Steel with Customizable Bale Size for Recycling
Productdetails
| Model-NR. | Y82T-100 | materiaal verwerkt | Plastic fles |
|---|---|---|---|
| kunststof soort | HUISDIER | Hoofdcyl.force | 100 ton |
| grootte van de persdoos | 1200*750*1000 (mm) | Baalsectie | 1200*750 (mm) |
| Stroom | 18,5 (kw) | Bale ontlaadmethode | Tas duwen |
| Productiecapaciteit | 5 sets/maand | Nominale kracht | 1000kn/100t |
| Kamergrootte | 1100*700*1600 mm | Baalsectie | 1100*700 mm |
| Stroom | 22 kW | Bale ontlaadmethode | Opbrengst |
| Controle | Niet-geautomatiseerd | ||
| Markeren | 100 Ton Vertical Baler Machine,Stainless Steel Paper Baler Machine,Customizable Bale Size Hydraulic Baler |
||
Productomschrijving
Y82t-100 Vertical Stainless Steel Baler Machine
Applications
- Compressing and baling woven bags/cloth, waste paper, and scrap paper for efficient transportation and storage
- Compressing and baling wool/wool balls
Key Features
- Baling press pressure ranges from 15 tons to 400 tons with complete specification options
- Hydraulic pressure drive with overhead type oil cylinder, operates without underground foundation
- All oil cylinders use imported sealing rings for reliable quality and extended service life
- Customizable package block size and compression chamber dimensions according to customer requirements
Technical Specifications
General Information
| Model Number | Y82-250~Y82-1600 |
| Certification | SGS |
| Place of Origin | Jiangsu P.R. China |
Commercial Terms
| Minimum Order Quantity | 1 Set |
| Price | Negotiable |
| Payment Terms | 30% T/T In Advance |
| Supply Ability | 15 sets/month |
| Delivery Time | As per requirement |
| Packaging Details | Seaworthy packing |
| After-sales Service | Engineers available for overseas service |
Baler Specifications for Paper/Plastic
| No. | Model | Nominal Force | Chamber Size | Bale Section | Power | Bale Discharging Method |
|---|---|---|---|---|---|---|
| 1 | Y82-25T | 250KN/25t | 1080*580*1500 mm | 1080*580mm | 15KW | Turn-out |
| 2 | Y82-63T | 630KN/63t | 1080*750*1500 mm | 1080*750mm | 15KW | Turn-out |
| 3 | Y82-100T | 1000KN/100t | 1100*700*1600 mm | 1100*700mm | 22KW | Turn-out |
| 4 | Y82-160T | 1600KN/160t | 1100*700*1600 mm | 1100*700mm | 22KW | Turn-out |
| 5 | Y82-200 | 2000KN/200t | 1500*1000*1600 mm | 1500*1000mm | 37KW | Turn-out |
| 6 | Y82-250 | 2500KN/250t | 1500*1000*1600 mm | 1500*1000mm | 44KW | Turn-out or PLC control |
| 7 | Y82-315 | 3150KN/315t | 2200*1100*3000 mm | 2200*1100 | 60KW | |
| 8 | Y82-400 | 4000KN/400t | 1500*1000*1600 mm | 1500*1000 | 90KW |
Product Gallery
Manufacturing Facility
Our Professional Team
Quality Certifications
Frequently Asked Questions
How can I get after-sales service?
We provide one year guarantee and lifelong maintenance. We will send you spare parts free of charge if problems are caused by us. For man-made problems, we also provide spare parts at cost. Any issues can be addressed by calling us directly.
Can I visit your factory before ordering?
Yes, welcome to visit our factory at: 29# Panlongshan Road, Jiangyin city, Jiangsu province, 214429, P.R China. Our factory is near Shanghai Pudong Airport and we provide airport pickup service. Hotel booking service is also available.
Are you a factory or trading company?
We are a manufacturer with our own factory operating for 20 years, with export proportion of 50-60%.
How can I trust your company?
With 20 years of professional design experience, we provide suitable suggestions and competitive pricing. We hold national patents, CE, and ISO certifications for all equipment. Factory inspections are welcome anytime, and we specialize in hydraulic balers and hydraulic shears.
Is your price competitive?
We supply only high-quality machines and provide the best factory price based on superior products and comprehensive service support.
