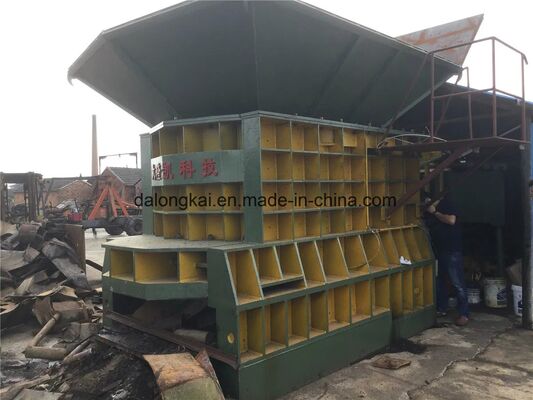

WS-800 Horizontal Metal Shear with 8000kn Max Cutting Force 1600mm Blade Length and 12-18t/H Production Rate

  • WS-800 Horizontal Metal Shear with 8000kn Max Cutting Force 1600mm Blade Length and 12-18t/H Production Rate
  • WS-800 Horizontal Metal Shear with 8000kn Max Cutting Force 1600mm Blade Length and 12-18t/H Production Rate
Min. bestelaantal 1
Prijs 125000
Productdetails
Max Cutting Force 8000KN Bladlengte 1600 mm
Productie 10-17t/u Stroom 180 kW
Nominale kracht 400 ton Gedreven type Hydraulisch
Maximale lengte 1600 mm Spanning 21,5 mpa
Automatische rangschikking Automatisch Scheerbeurthoogte 420/500
Model-NR. WS-800 Productiecapaciteit 5 sets/maand
Scheerbeurthoogte 420/500 mm
Markeren

8000kn Max Cutting Force Gantry Shear

,

1600mm Blade Length Horizontal Metal Shear

,

12-18t/H Production Rate Scrap Metal Shear
Laat een bericht achter
Productomschrijving
WS-800 Horizontal Stainless Steel Cutting Machine
The WS Horizontal Metal Shear is designed for economical scrap processing with easy operation and flexible transportation capabilities. Featuring a roll on/roll off system, this machine offers various models to meet different operational requirements.
Applications
Specifically engineered for scrap metal processing, this horizontal shear provides efficient and cost-effective material handling solutions for recycling and manufacturing operations.
Key Features
  • Horizontal structure supporting both manual and automatic conveyor feeding
  • PLC control system with push-button operation for safety and reliability
  • High output capacity for maximum productivity
  • Easy operation with flexible transportation via roll on/roll off system
  • Manual belting compatibility with HPM series horizontal balers
Product Specifications
Specification Details
Product Name WS Horizontal Metal Shear
Condition New
Application Scrap metal
Nominal Force 400 Ton
Driven Type Hydraulic
Max. Length To Shear 1600mm
Voltage 21.5Mpa, Customized
Color Customized
Automatic Grade Automatic
Technical Specifications
Model Max Cutting Force (KN) Blade Length (mm) Shear Height (mm) Production Rate (t/h) Power (KW)
WS-400 4000 1000 300/420 4-7 74
WS-500 5000 1400/1600 300/420 6-9 90
WS-630 6300 1400/1600 300/420 8-15 135
WS-800 8000 1600 420/500 12-18 180
WS-1000 10000 1600/2100 420/500 15-25 225
Commercial Terms
Term Details
Minimum Order Quantity 1 Set
Price Negotiable
Payment Terms 30% T/T In Advance
Supply Ability 5 sets /month
Delivery Time As your requirement
Packaging Details Seaworthy packing
After-sales Service Engineers are available to overseas service
Note: All specifications and commercial terms are subject to customization based on specific customer requirements and operational needs.
