WS-500 Automatic Shear Machine with 5000kn Max Cutting Force 1400mm Blade Length and 6-8t/H Production Rate

  • WS-500 Automatic Shear Machine with 5000kn Max Cutting Force 1400mm Blade Length and 6-8t/H Production Rate
  • WS-500 Automatic Shear Machine with 5000kn Max Cutting Force 1400mm Blade Length and 6-8t/H Production Rate
  • WS-500 Automatic Shear Machine with 5000kn Max Cutting Force 1400mm Blade Length and 6-8t/H Production Rate
  • WS-500 Automatic Shear Machine with 5000kn Max Cutting Force 1400mm Blade Length and 6-8t/H Production Rate
  • WS-500 Automatic Shear Machine with 5000kn Max Cutting Force 1400mm Blade Length and 6-8t/H Production Rate
Certificering ISO
Min. bestelaantal 1
Prijs 52000
Productdetails
Model-NR. WS-500 Type Schrootontvezelmachine
Automatisering Automatisch Max Cutting Force 5000kN
Bladlengte 1400 mm Productie 6-8t/h
Stroom 90 kW Nominale kracht 400 ton
Gedreven type Hydraulisch Maximale lengte 1600 mm
Spanning 21,5 mpa Scheerbeurthoogte 300/420 mm
Productiecapaciteit 5 sets/maand Automatische rangschikking Automatisch
Levering vermogen 5 sets/maand
Markeren

5000kn Max Cutting Force Gantry Shear

,

1400mm Blade Length Automatic Shear Machine

,

6-8t/H Production Rate Scrap Metal Shear
Laat een bericht achter
Productomschrijving

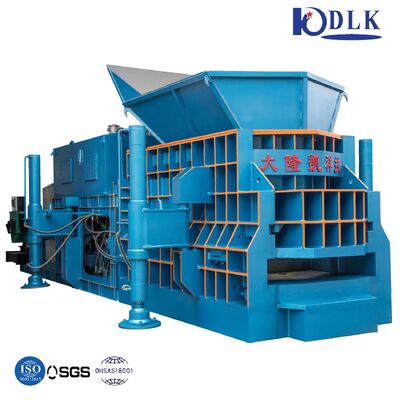

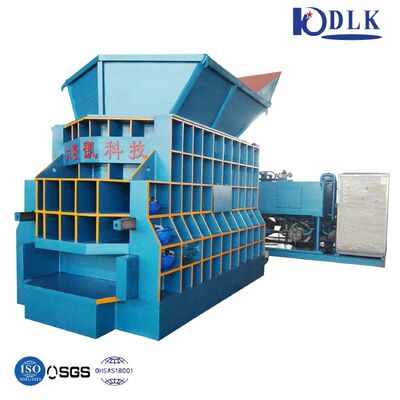

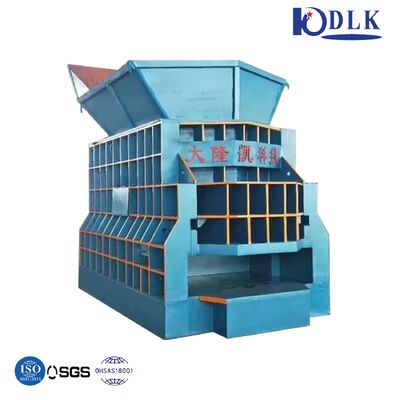

WS-500 Metal Structure Automatic Shear Machine
The WS Horizontal Metal Shear is designed for economical scrap metal processing with easy operation and flexible transportation via roll on/roll off system. Available in various models to meet different production requirements.
Key Features
  • Horizontal structure allows for manual or automatic feeding with conveyor
  • PLC control and push-button operation for safe and reliable performance
  • High output capacity for efficient scrap processing
  • Manual belting system for HPM series horizontal balers
Product Specifications
Product Name WS Horizontal Metal Shear
Condition New
Application Scrap metal processing
Nominal Force 400 Ton
Driven Type Hydraulic
Max. Length To Shear 1600mm
Voltage 21.5 Mpa, Customized
Color Customized
Automatic Grade Automatic
Technical Specifications
Model Max Cutting Force (KN) Blade Length (mm) Shear Height (mm) Production Rate (t/h) Power (KW)
WS-400 4000 1000 300/420 4-7 74
WS-500 5000 1400/1600 300/420 6-9 90
WS-630 6300 1400/1600 300/420 8-15 135
WS-800 8000 1600 420/500 12-18 180
WS-1000 10000 1600/2100 420/500 15-25 225
Commercial Terms
Minimum Order Quantity 1 Set
Price Negotiable
Payment Terms 30% T/T In Advance
Supply Ability 5 sets /month
Delivery Time As per requirement
Packaging Details Seaworthy packing
After-sales Service Engineers available for overseas service
