WS-630 Hydraulic Automatic Gantry Shear with 6300kn Max Cutting Force 1400mm Blade Length and 8-15t/H Production Rate
Productdetails
| Model-NR. | Ws-630 | Max Cutting Force | 6300 kN |
|---|---|---|---|
| Bladlengte | 1400/1600 mm | Productie | 8-15t/h |
| Stroom | 135 kW | Nominale kracht | 400 ton |
| Maximale lengte | 1600 mm | Spanning | 21,5 mpa |
| Scheerbeurthoogte | 300/420 mm | Gedreven type | Hydraulisch |
| Automatische rangschikking | Automatisch | Voorwaarde | Nieuw |
| Sollicitatie | metaalschroot | Kleur | Aangepast |
| Productiecapaciteit | 5 sets/maand | ||
| Markeren | 6300kn Max Cutting Force Gantry Shear,1400mm Blade Length Hydraulic Metal Cutting Machine,8-15t/H Production Rate Horizontal Metal Shear |
||
Productomschrijving

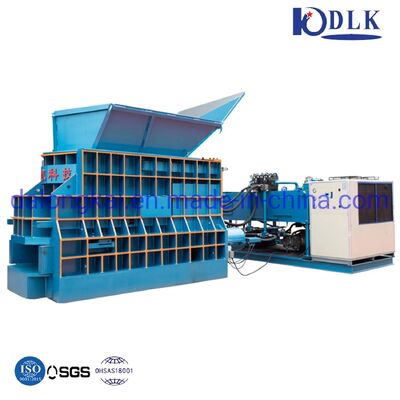

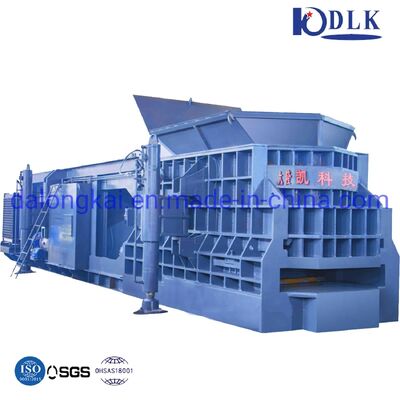

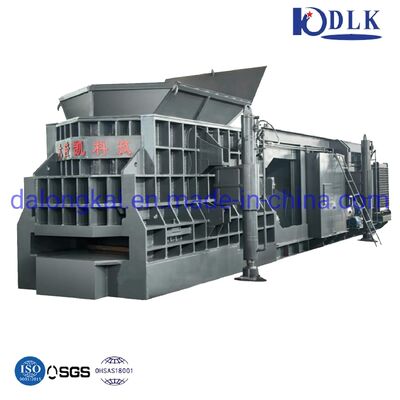

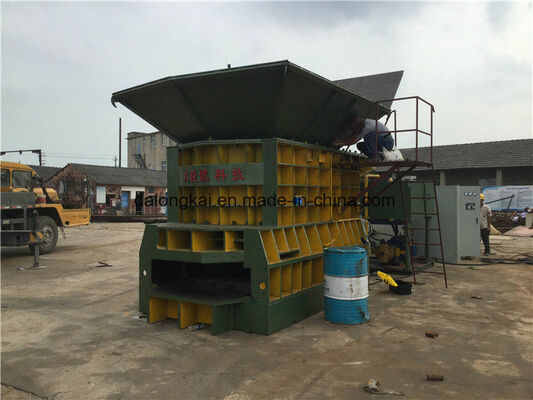

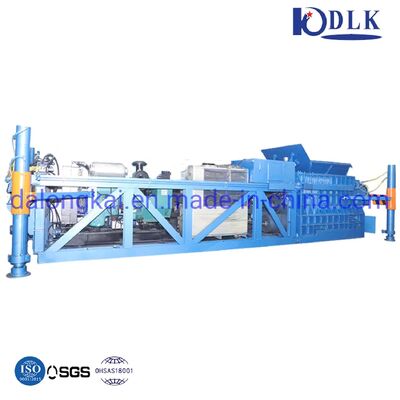

WS-630 Hydraulic Automatic Metal Cutting Machine
WS Horizontal Metal Shear
This horizontal metal shear is designed for cutting various metal cross-sections including round, square, channel, angle, I-beam, plate, and structural scrap metal at cold state. It facilitates baling, storage, and transportation of scrap metal materials while providing qualified furnace charge for smelting plants. With its wide application range, this machine serves as essential processing equipment in metal recycling facilities, factory casting rooms, and machinery construction industries.
Key Features of WS Horizontal Metal Shear
- Horizontal structure with manual or automatic conveyor feeding options
- PLC control and push-button operation for safe and reliable performance
- Manual belting system
Product Specifications
| Product Name | WS Horizontal Metal Shear |
| Condition | New |
| Application | Scrap metal |
| Nominal Force | 400Ton |
| Driven Type | Hydraulic |
| Max. Length To Shear | 1600mm |
| Voltage | 21.5Mpa, Customized |
| Color | Customized |
| Automatic Grade | Automatic |
Technical Specifications
| Model | Max Cutting Force (KN) | Blade Length (mm) | Shear Height (mm) | Production Rate (t/h) | Power (KW) |
|---|---|---|---|---|---|
| WS-400 | 4000 | 1000 | 300/420 | 4-7 | 74 |
| WS-500 | 5000 | 1400/1600 | 300/420 | 6-9 | 90 |
| WS-630 | 6300 | 1400/1600 | 300/420 | 8-15 | 135 |
| WS-800 | 8000 | 1600 | 420/500 | 12-18 | 180 |
| WS-1000 | 10000 | 1600/2100 | 420/500 | 15-25 | 225 |
Applications
WS series horizontal automatic shearing machines are designed for shearing various light and thin materials, metal structures, and domestic scrap. These machines feature easy operation and flexible transportation with a roll on/roll off system. Multiple models are available to suit different requirements.
Commercial Terms
| Minimum Order Quantity | 1 Set |
| Price | Negotiable |
| Payment Terms | 30% T/T In Advance |
| Supply Ability | 5 sets /month |
| Delivery Time | As your requirement |
| Packaging Details | Seaworthy packing |
| After-sales Service | Engineers are available for overseas service |
Our Factory
Jiangsu Dalongkai Technology Co., Ltd. is located in Jiangyin, one of the top 100 counties in the Yangtze River Delta region. As a professional manufacturer of large and medium-sized hydraulic machinery equipment in China, we serve as one of the primary production bases for metal hydraulic balers and metal shearing machines. Our products are widely used in materials regeneration, waste utilization, circular economy, and related industries, earning strong recognition from users worldwide.
Certification
Frequently Asked Questions
-
Can I add my logo on the machines?
Yes, OEM and ODM services are available. You will need to provide a trademark authorization letter. -
How can I get after-sales service?
We provide free spare parts for issues caused by manufacturing defects. For user-caused problems, spare parts are available at cost. -
Do you have inspection procedures for machines?
Yes, 100% self-inspection is conducted before packing. -
Can I visit your factory before ordering?
Certainly! We welcome visits to our factory at: No.29, Panlongshan Road, Jiangyin City, Jiangsu Province, China. -
Can we order one set machine?
Yes, single set orders are accepted.
